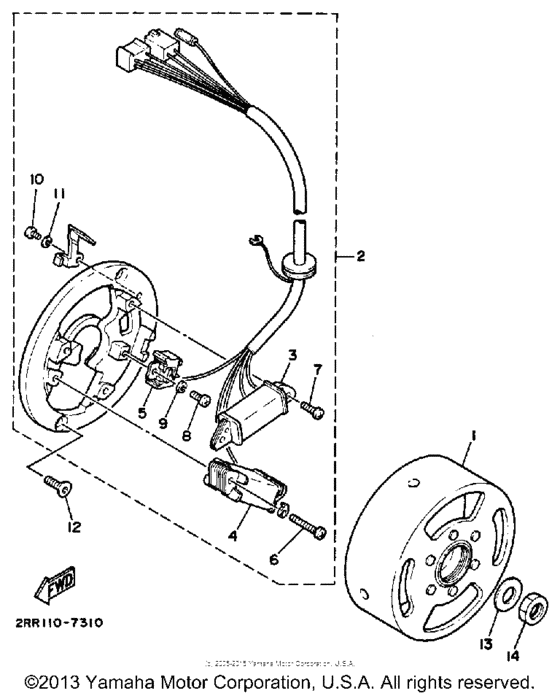

Generator Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AL-85550-M2-00
Rotor Assy
|
2AL-85550-M2-00 |
— | ||
| replacement | |||||
|
1
|
1
2AL-85550-M3-00
Rotor Assy
|
2AL-85550-M3-00 |
— | ||
|
2
|
2
3AX-85560-00-00
Base Assembly
|
3AX-85560-00-00 |
— | ||
|
3
|
3
4Y4-85520-M0-00 Coil, Charge |
4Y4-85520-M0-00 |
from US $72 |
||
| replacement | |||||
|
3
|
3
4Y4-85520-M1-00 COIL CHARGE |
4Y4-85520-M1-00 |
from US $37.38 |
||
|
4
|
4
2RR-81313-M0-00
Coil, Lighting 1
|
2RR-81313-M0-00 |
— | ||
|
5
|
5
2AL-85580-M0-00 Coil, Pulser |
2AL-85580-M0-00 |
from US $33.32 |
||
|
6
|
6
985-11040-25-00
Screw, Pan Head
|
985-11040-25-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
7
|
7
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
8
|
8
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
10
|
10
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
10
|
10
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
90149-05237-00 Screw, Countersunk |
90149-05237-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
90151-05048-00 Screw, Countersunk |
90151-05048-00 |
from US $1.98 |
||
|
13
|
13
90201-123L6-00 Washer, Plate |
90201-123L6-00 |
from US $10.20 |
||
|
14
|
14
90179-12323-00 Nut |
90179-12323-00 |
from US $4.34 |
||
| replacement | |||||
|
14
|
14
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
