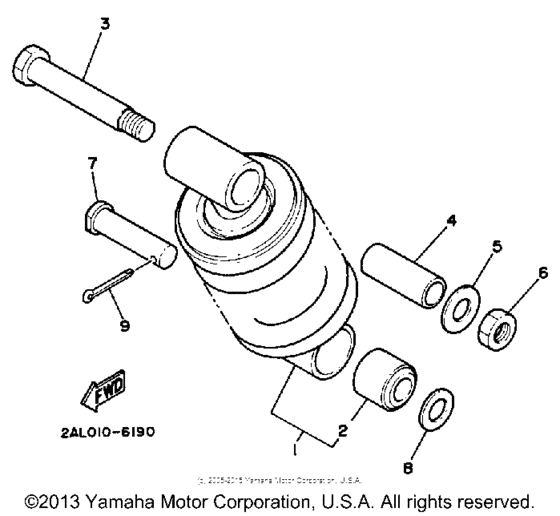

Rear shocks Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AL-22210-01-E1
Shk/abs Assembly, Rear
|
2AL-22210-01-E1 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
5G3-22216-00-00
Bush, Rr Shock Abs
RR SHOCK ABS |
5G3-22216-00-00 |
— | ||
|
3
|
3
90109-104E4-00 Bolt |
90109-104E4-00 |
from US $4.53 |
||
|
4
|
4
903-87124-T2-00
Collar(1Ar)
|
903-87124-T2-00 |
— | ||
| replacement | |||||
|
4
|
4
90387-1210W-00 Collar |
90387-1210W-00 |
from US $10.91 |
||
|
5
|
5
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
6
|
6
956-01101-00-00
Nut, U (737 Steering Column)
|
956-01101-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
7
|
7
90240-12116-00
Pin, Clevis
|
90240-12116-00 |
— | ||
|
8
|
8
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
9
|
9
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
9
|
9
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
