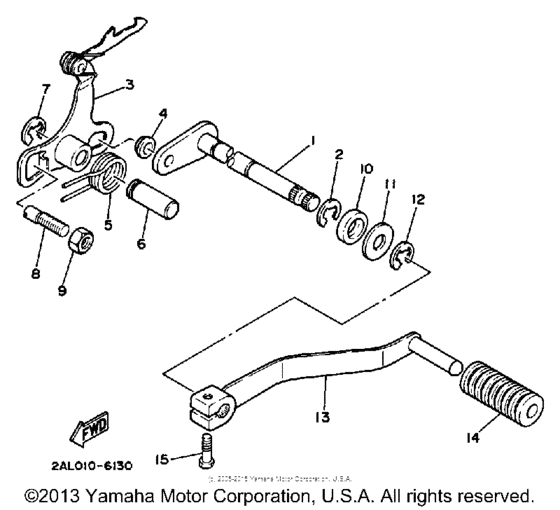

Shift shaft Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AL-18101-01-00 Shift Shaft Assembly.1 |
2AL-18101-01-00 |
US $62.10 |
||
|
2
|
2
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
3
|
3
2AL-18120-01-00
Shift Lever Assembly
|
2AL-18120-01-00 |
— | ||
| replacement | |||||
|
3
|
3
353-18120-00-00
Shift Lever Assembly
|
353-18120-00-00 |
— | ||
|
4
|
4
214-18178-00-00 Roller, Shift Lever |
214-18178-00-00 |
US $17.75 |
||
|
5
|
5
90508-32054-00 Spring, Torsion |
90508-32054-00 |
from US $3.85 |
||
|
6
|
6
367-18197-00-00
Shaft
|
367-18197-00-00 |
— | ||
|
7
|
7
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
8
|
8
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
9
|
9
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
9
|
9
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
10
|
10
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $5.41 |
||
|
11
|
11
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
12
|
12
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
13
|
13
2AL-18111-00-00
Pedal, Shift
|
2AL-18111-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3Y1-18111-00-00
Pedal, Shift
|
3Y1-18111-00-00 |
— | ||
|
14
|
14
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
15
|
15
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
