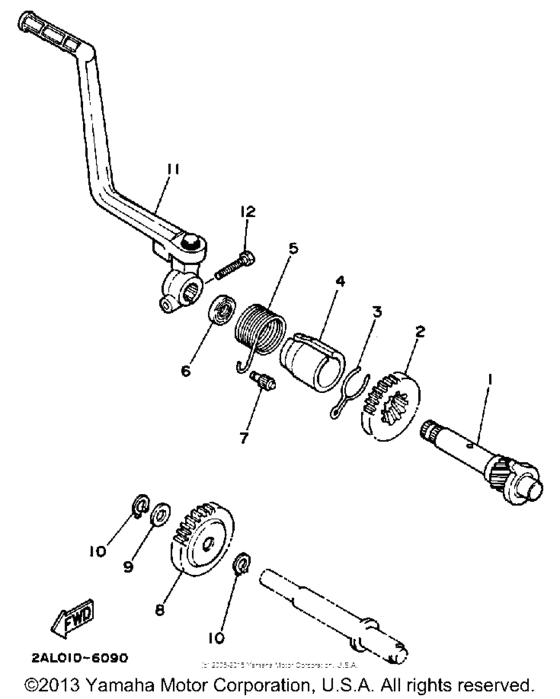

Starter Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AL-15660-00-00
Kick Axle Assembly
|
2AL-15660-00-00 |
— | ||
|
2
|
2
353-15641-00-00
Gear, Kick
24T |
353-15641-00-00 |
— | ||
|
3
|
3
90468-26038-00
Clip
|
90468-26038-00 |
— | ||
|
4
|
4
4U1-15664-00-00
Guide, Spring
|
4U1-15664-00-00 |
— | ||
|
5
|
5
90508-26136-00 Spring, Torsion |
90508-26136-00 |
from US $8.93 |
||
|
6
|
6
93109-15001-00 Oil Seal |
93109-15001-00 |
from US $4.43 |
||
|
7
|
7
248-15668-00-00 Stopper |
248-15668-00-00 |
from US $2.70 |
||
|
8
|
8
353-15651-00-00
Gear, Kick Idle
|
353-15651-00-00 |
— | ||
|
9
|
9
90201-12166-00 Washer, Plate |
90201-12166-00 |
from US $1.70 |
||
|
10
|
10
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
11
|
11
2AL-15620-00-00
Kick Crank Assembly
|
2AL-15620-00-00 |
— | ||
|
12
|
12
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
