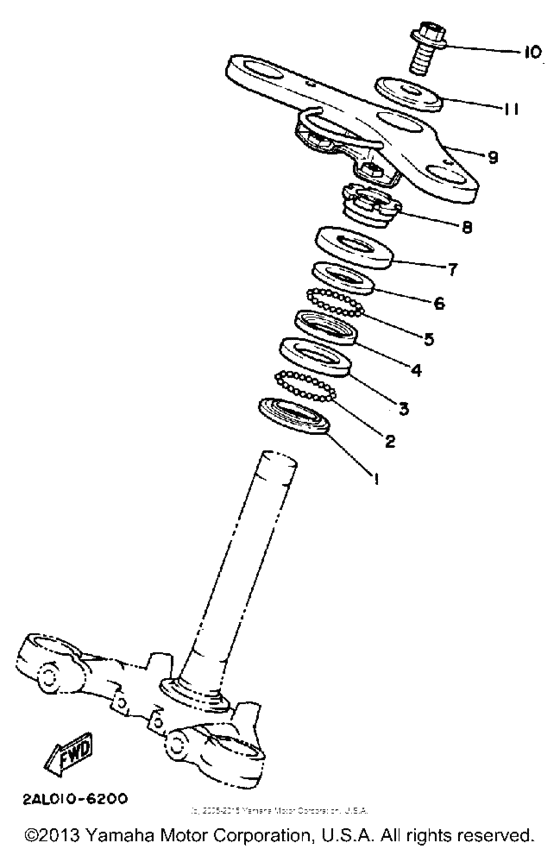

Steering Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
3
|
3
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
4
|
4
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
4
|
4
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
5
|
5
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
5
|
5
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
6
|
6
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
6
|
6
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
7
|
7
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
8
|
8
90179-25051-00 Nut |
90179-25051-00 |
from US $17.99 |
||
|
9
|
9
2AL-23435-00-35
Crown, Handle
|
2AL-23435-00-35 |
— | ||
|
10
|
10
90105-10427-00 Bolt, Flange |
90105-10427-00 |
from US $6.71 |
||
| replacements | |||||
|
10
|
10
90105-10153-00 Bolt, Flange |
90105-10153-00 |
from US $6.94 |
||
|
10
|
10
95817-10022-00 Bolt, Flange(4Bd) |
95817-10022-00 |
from US $4.68 |
||
|
11
|
11
90209-10021-00 Washer |
90209-10021-00 |
US $4.53 |
||
| replacement | |||||
|
11
|
11
90209-10160-00 Washer (1Yj) |
90209-10160-00 |
from US $4.53 |
||
