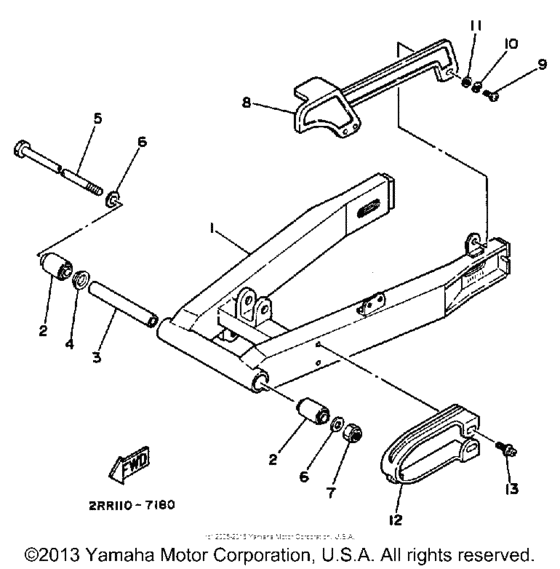

Swing arm Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2AL-22110-00-35
Rear Arm
|
2AL-22110-00-35 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.73 |
||
|
3
|
3
90560-10286-00
Spacer
|
90560-10286-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
90560-14287-00
Spacer
|
90560-14287-00 |
— | ||
|
5
|
5
486-22141-00-00 Shaft,pivot |
486-22141-00-00 |
from US $19.84 |
||
| replacement | |||||
|
5
|
5
486-22141-01-00 Shaft, Pivot |
486-22141-01-00 |
from US $19.84 |
||
|
6
|
6
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
7
|
7
956-01101-00-00
Nut, U (737 Steering Column)
|
956-01101-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
8
|
8
21W-22199-00-00 Support, Chain |
21W-22199-00-00 |
from US $18.70 |
||
|
9
|
9
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
10
|
10
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
11
|
11
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
12
|
12
2AL-22151-00-00
Seal, Guard
|
2AL-22151-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
901-59060-84-00
Screw, With Washer
|
901-59060-84-00 |
— | ||
| replacements | |||||
|
13
|
13
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
13
|
13
901-59060-82-00
Screw, Panhead W/washer (22F)
|
901-59060-82-00 |
— | ||
