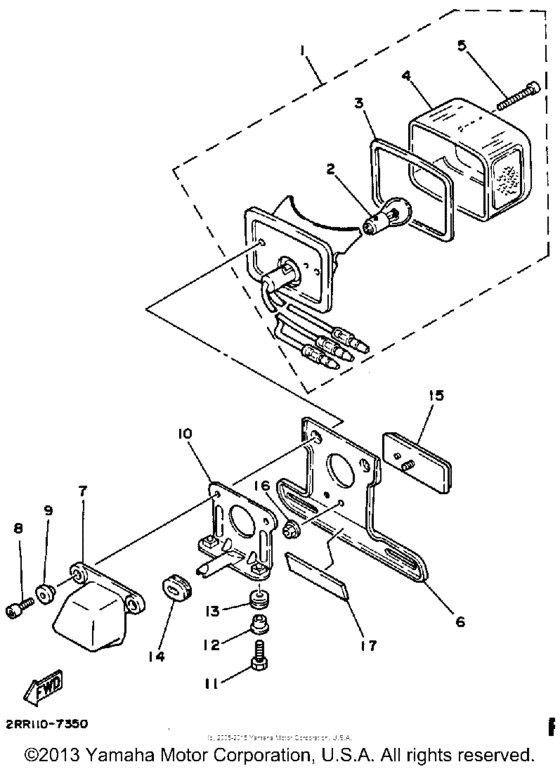

Taillight Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M1-84510-60-00
Taillight Unit Assembly
|
1M1-84510-60-00 |
— | ||
|
2
|
2
1M1-84514-60-00
Bulb (6V-25/5.3W)
6VP21/5W17904 |
1M1-84514-60-00 |
— | ||
| replacement | |||||
|
2
|
2
1M1-84514-60-XX
BOLT
6VP21/5W17904 |
1M1-84514-60-XX |
— | ||
|
3
|
3
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
3
|
3
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
4
|
4
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
5
|
5
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
5
|
5
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
5
|
5
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
6
|
6
1UV-84751-00-98
Bracket, License
|
1UV-84751-00-98 |
— | ||
| replacement | |||||
|
6
|
6
1UV-84751-00-R4
Bracket, License
|
1UV-84751-00-R4 |
— | ||
|
7
|
7
3L8-84544-00-00 Cover |
3L8-84544-00-00 |
from US $2.94 |
||
|
8
|
8
90110-06104-00 Bolt, Hexagon Socket Head |
90110-06104-00 |
from US $4.53 |
||
| replacement | |||||
|
8
|
8
90110-06202-00 Bolt, Hexagon Socket Head |
90110-06202-00 |
from US $1.81 |
||
|
9
|
9
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
9
|
9
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
10
|
10
2RR-84519-00-00
Bracket, Taillight
|
2RR-84519-00-00 |
— | ||
|
11
|
11
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
12
|
12
90387-06638-00 CollarCollar 2 |
90387-06638-00 |
from US $7.08 |
||
|
13
|
13
904-80134-28-00 Grommet(80K) |
904-80134-28-00 |
from US $2.41 |
||
|
14
|
14
90480-01432-00 Grommet |
90480-01432-00 |
from US $2.84 |
||
| replacement | |||||
|
14
|
14
90480-01445-00 Grommet(1Kt) |
90480-01445-00 |
from US $3.40 |
||
|
15
|
15
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
16
|
16
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
17
|
17
34M-21639-00-00
Damper 2
|
34M-21639-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
