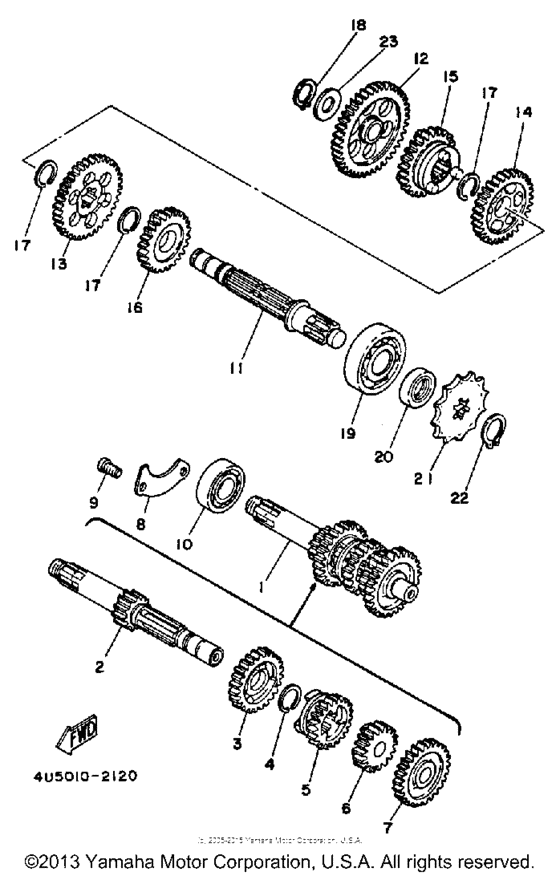

Transmission Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-17410-10-00
Main Axle
|
353-17410-10-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
353-17411-10-00
Axle, Main
|
353-17411-10-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
353-17141-12-00 Gear, 4Th Pinion4TH PINION |
353-17141-12-00 |
US $93.62 |
||
|
4
|
4
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
5
|
5
353-17131-10-00 Gear, 3Rd Pinion3RD PINION |
353-17131-10-00 |
US $97.67 |
||
|
6
|
6
353-17121-11-00 Gear, 2Nd Pinion2ND PINION |
353-17121-11-00 |
US $79.45 |
||
|
7
|
7
353-17151-00-00
Gear, 5Th Pinion
5TH PINION |
353-17151-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
5TH PINION |
999-99999-99-00 |
— | ||
|
8
|
8
353-17471-00-00
Plate, Cover
|
353-17471-00-00 |
— | ||
|
9
|
9
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
10
|
10
93306-20333-00 Bearing(39K) |
93306-20333-00 |
from US $15.30 |
||
| replacement | |||||
|
10
|
10
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
11
|
11
4U1-17421-00-00
Axle, Drive
|
4U1-17421-00-00 |
— | ||
|
12
|
12
353-17211-01-00
Gear, 1St Wheel
1ST WHEEL |
353-17211-01-00 |
— | ||
|
13
|
13
353-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
353-17221-00-00 |
— | ||
|
14
|
14
353-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
353-17231-00-00 |
— | ||
|
15
|
15
3M8-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
3M8-17241-00-00 |
— | ||
|
16
|
16
353-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
353-17251-00-00 |
— | ||
|
17
|
17
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
18
|
18
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
19
|
19
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
20
|
20
931-02171-87-00 Oil Seal |
931-02171-87-00 |
from US $7.36 |
||
|
21
|
21
93811-12009-00 Sprocket, Driven (257-17461-21)257-17461-21 |
93811-12009-00 |
from US $17.21 |
||
|
22
|
22
99009-16400-00 Circlip(13T) |
99009-16400-00 |
from US $1.56 |
||
|
23
|
23
257-17219-00-00 Shim |
257-17219-00-00 |
from US $2.70 |
||
