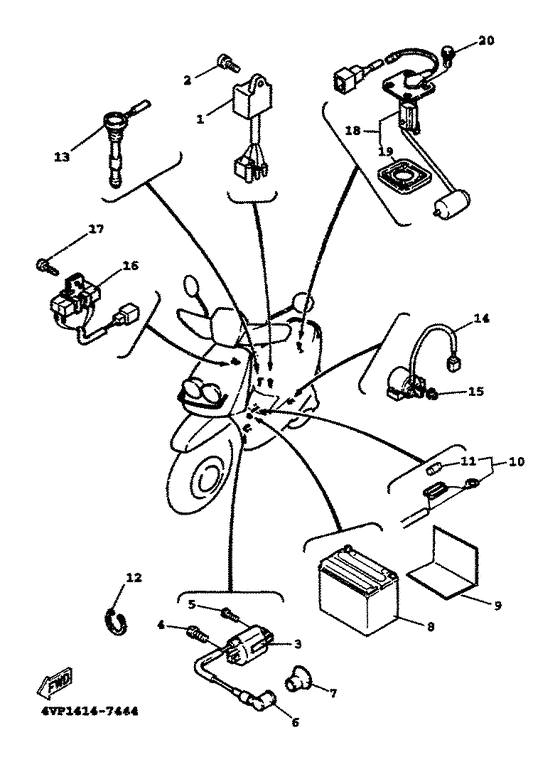

Electrical 1 Diagram Yamaha YW100 BW'S
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5JY2
- Sales region
- General (999)
- Engine Capacity
- 100
- Model
- YW100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4DM-H5540-00-00 C.d.i. Unit Assy |
4DM-H5540-00-00 |
US $56.23 |
||
|
02
|
02
90159-06056-00 Screw, With Washer |
90159-06056-00 |
from US $1.70 |
||
| replacement | |||||
|
02
|
02
901-59068-47-00 Screw, With Washer |
901-59068-47-00 |
from US $1.70 |
||
|
03
|
03
4VP-H2010-01-00
Ignition coil assy
|
4VP-H2010-01-00 |
— | ||
|
04
|
04
97007-06016-00 Bolt |
97007-06016-00 |
US $1.21 |
||
| replacement | |||||
|
04
|
04
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
05
|
05
90153-06839-00 Screw, Hexagon |
90153-06839-00 |
from US $1.70 |
||
|
06
|
06
4VP-H2370-00-00 Plug Cap Assy |
4VP-H2370-00-00 |
US $19.15 |
||
|
07
|
07
4VP-H2372-00-00 Seal, Plug Cap |
4VP-H2372-00-00 |
US $9.07 |
||
|
08
|
08
4KH-H2100-00-00
Battery assy
|
4KH-H2100-00-00 |
— | ||
|
09
|
09
5DA-H2176-00-00 Damper |
5DA-H2176-00-00 |
from US $2.66 |
||
|
10
|
10
4VP-H2590-10-00 Wire Harness Assy |
4VP-H2590-10-00 |
US $206.53 |
||
|
11
|
11
1NT-H2151-00-00 Fuse |
1NT-H2151-00-00 |
from US $3.68 |
||
| replacement | |||||
|
11
|
11
27V-82151-00-00 Fuse |
27V-82151-00-00 |
from US $3.68 |
||
|
12
|
12
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
12
|
12
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
13
|
13
4VP-H5720-00-00 Oil Level Gauge Assy |
4VP-H5720-00-00 |
US $47.67 |
||
|
14
|
14
3KW-H1940-01-00 Starter Relay Assy |
3KW-H1940-01-00 |
US $45.32 |
||
| replacement | |||||
|
14
|
14
3KW-H1940-02-00 Starter Relay Assy |
3KW-H1940-02-00 |
US $45.32 |
||
|
15
|
15
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
16
|
16
3GF-H5370-01-00 Resistor Assy |
3GF-H5370-01-00 |
US $58.58 |
||
|
17
|
17
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
18
|
18
4VP-X8575-00-00 Sender Assy |
4VP-X8575-00-00 |
from US $19.76 |
||
| replacement | |||||
|
18
|
18
4VP-XH575-00-00 Sender Assy |
4VP-XH575-00-00 |
from US $19.76 |
||
|
19
|
19
53X-H5753-00-00 Gasket, Sender Unit |
53X-H5753-00-00 |
from US $1.19 |
||
| replacement | |||||
|
19
|
19
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $7.07 |
||
|
20
|
20
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
