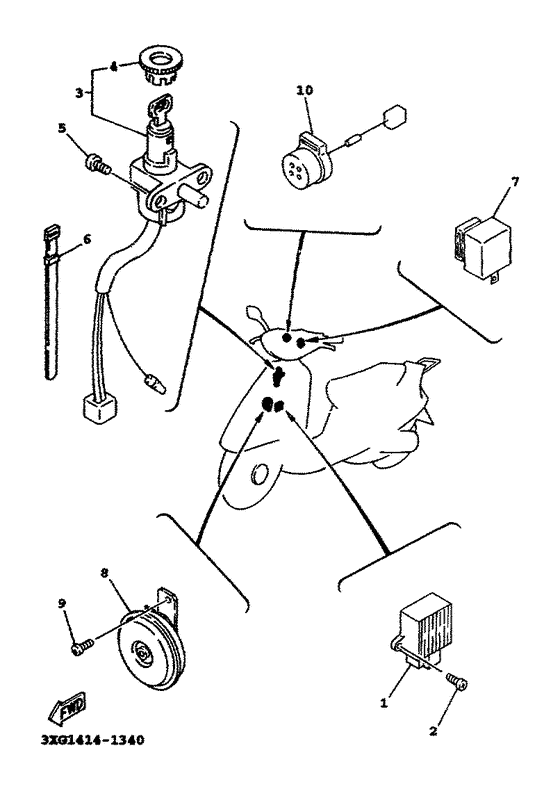

Electrical 2 Diagram Yamaha YW100 BW'S
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5JY2
- Sales region
- General (999)
- Engine Capacity
- 100
- Model
- YW100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GF-H1960-00-00 Rectifier & Regulator Assy |
3GF-H1960-00-00 |
from US $119.92 |
||
|
02
|
02
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
02
|
02
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
03
|
03
4VP-H2501-00-00 Main Switch Steering Lock |
4VP-H2501-00-00 |
US $136.64 |
||
| replacement | |||||
|
03
|
03
4VP-H2501-01-00 Main Switch Steeri |
4VP-H2501-01-00 |
US $136.64 |
||
|
04
|
04
4VP-H2552-00-00 Cap, Switch |
4VP-H2552-00-00 |
US $8.08 |
||
|
05
|
05
9760L-06216-00 Screw, Pan Head |
9760L-06216-00 |
from US $0.14 |
||
|
06
|
06
23Y-H3936-00-00 Band, Switch Cord |
23Y-H3936-00-00 |
from US $0.29 |
||
| replacement | |||||
|
06
|
06
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
07
|
07
1MH-H3350-V0-00 Flasher Relay Assy |
1MH-H3350-V0-00 |
US $61.07 |
||
|
08
|
08
4KP-H3371-01-00 Horn |
4KP-H3371-01-00 |
from US $14.99 |
||
|
09
|
09
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
10
|
10
3XY-H3390-01-00 Audio Pilot Assy |
3XY-H3390-01-00 |
US $43.38 |
||
| replacement | |||||
|
10
|
10
3XY-H3390-02-00 Audio Pilot Assy |
3XY-H3390-02-00 |
from US $10.49 |
||
