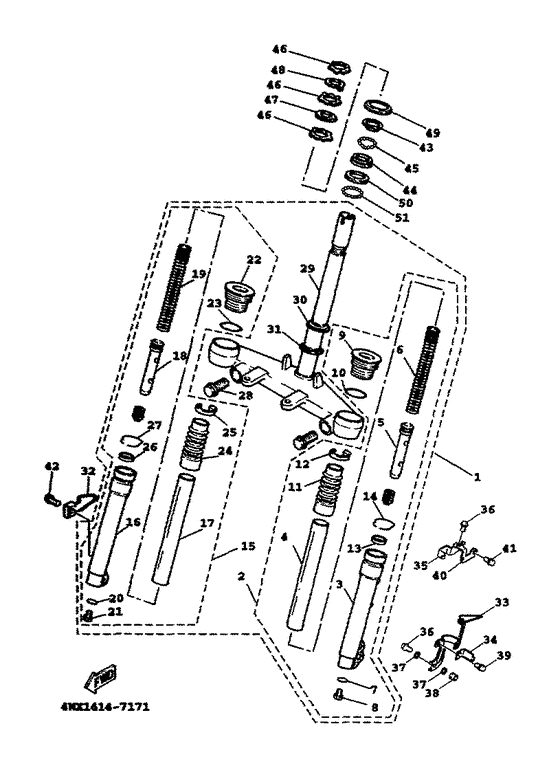

Front fork Diagram Yamaha YW100 BW'S
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5JY2
- Sales region
- General (999)
- Engine Capacity
- 100
- Model
- YW100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4WX-F3100-11-1V
Front fork assy
(fairy silver) |
4WX-F3100-11-1V |
— | ||
|
02
|
02
4WX-F3102-10-1V
Front fork assy (l.h)
(fairy silver) |
4WX-F3102-10-1V |
— | ||
|
03
|
03
4JL-F3126-00-1V
Tube, outer (left)
(fairy silver) |
4JL-F3126-00-1V |
— | ||
|
04
|
04
4WX-F3110-00-00 Inner Tube Comp.1 |
4WX-F3110-00-00 |
US $133.32 |
||
|
05
|
05
4WX-F3170-00-00 Cylinder Comp., Front Fork |
4WX-F3170-00-00 |
US $67.64 |
||
|
06
|
06
4WX-F3141-10-00 Spring, Front Fork |
4WX-F3141-10-00 |
US $33.58 |
||
|
07
|
07
3GF-F3158-00-00 Gasket |
3GF-F3158-00-00 |
US $1.70 |
||
|
08
|
08
3GF-F3181-00-00 Bolt, Hexagon Socket Head |
3GF-F3181-00-00 |
from US $1.67 |
||
|
09
|
09
4WX-F3154-00-00 Cap |
4WX-F3154-00-00 |
US $4.68 |
||
|
10
|
10
3GF-F3147-00-00 O-Ring |
3GF-F3147-00-00 |
from US $0.45 |
||
| replacement | |||||
|
10
|
10
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
|
11
|
11
4WX-F3191-10-00 Boot |
4WX-F3191-10-00 |
US $56.51 |
||
| replacement | |||||
|
11
|
11
4WX-F3191-00-00
Boot
|
4WX-F3191-00-00 |
— | ||
|
12
|
12
4TE-F3192-00-00 Band |
4TE-F3192-00-00 |
from US $1.30 |
||
|
13
|
13
4JL-F3145-00-00 Oil Seal |
4JL-F3145-00-00 |
US $13.32 |
||
| replacement | |||||
|
13
|
13
5SU-F3145-00-00 Oil Seal |
5SU-F3145-00-00 |
from US $3.53 |
||
|
14
|
14
3NW-F3156-00-00 Ring, Snap |
3NW-F3156-00-00 |
from US $0.45 |
||
|
15
|
15
4WX-F3103-10-1V
Front fork assy (r.h)
(fairy silver) |
4WX-F3103-10-1V |
— | ||
|
16
|
16
4JL-F3136-00-1V
Tube, Outer (Right)
(fairy silver) |
4JL-F3136-00-1V |
— | ||
|
17
|
17
4WX-F3110-00-00 Inner Tube Comp.1 |
4WX-F3110-00-00 |
US $133.32 |
||
|
18
|
18
4WX-F3170-00-00 Cylinder Comp., Front Fork |
4WX-F3170-00-00 |
US $67.64 |
||
|
19
|
19
4WX-F3141-10-00 Spring, Front Fork |
4WX-F3141-10-00 |
US $33.58 |
||
|
20
|
20
3GF-F3158-00-00 Gasket |
3GF-F3158-00-00 |
US $1.70 |
||
|
21
|
21
3GF-F3181-00-00 Bolt, Hexagon Socket Head |
3GF-F3181-00-00 |
from US $1.67 |
||
|
22
|
22
4WX-F3154-00-00 Cap |
4WX-F3154-00-00 |
US $4.68 |
||
|
23
|
23
3GF-F3147-00-00 O-Ring |
3GF-F3147-00-00 |
from US $0.45 |
||
| replacement | |||||
|
23
|
23
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
|
24
|
24
4WX-F3191-10-00 Boot |
4WX-F3191-10-00 |
US $56.51 |
||
| replacement | |||||
|
24
|
24
4WX-F3191-00-00
Boot
|
4WX-F3191-00-00 |
— | ||
|
25
|
25
4TE-F3192-00-00 Band |
4TE-F3192-00-00 |
from US $1.30 |
||
|
26
|
26
4JL-F3145-00-00 Oil Seal |
4JL-F3145-00-00 |
US $13.32 |
||
| replacement | |||||
|
26
|
26
5SU-F3145-00-00 Oil Seal |
5SU-F3145-00-00 |
from US $3.53 |
||
|
27
|
27
3NW-F3156-00-00 Ring, Snap |
3NW-F3156-00-00 |
from US $0.45 |
||
|
28
|
28
3GF-F3346-00-00 Bolt 1 |
3GF-F3346-00-00 |
from US $1.28 |
||
|
29
|
29
4WX-F3340-01-00 Under Bracket Comp |
4WX-F3340-01-00 |
US $342.64 |
||
|
30
|
30
1MH-F3411-00-00 Race, Ball 1 |
1MH-F3411-00-00 |
from US $8.75 |
||
| replacements | |||||
|
30
|
30
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
|
30
|
30
4C6-F3411-10-00 Race, Ball 1 |
4C6-F3411-10-00 |
from US $8.84 |
||
|
30
|
30
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
31
|
31
3KW-F3462-00-00 Seal, Steering |
3KW-F3462-00-00 |
from US $2.93 |
||
|
32
|
32
3GF-F3317-00-00 Holder, Cable |
3GF-F3317-00-00 |
from US $2.93 |
||
|
33
|
33
4VP-F5875-01-00 Holder, Brake Hose |
4VP-F5875-01-00 |
from US $6.40 |
||
|
34
|
34
5FA-F5876-00-00 Holder, Brake Hose 2 |
5FA-F5876-00-00 |
from US $2.52 |
||
|
35
|
35
4VP-F5876-00-00 Holder, Brake Hose 2 |
4VP-F5876-00-00 |
from US $3.96 |
||
|
36
|
36
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
37
|
37
90201-064J1-00 Washer, Plate |
90201-064J1-00 |
from US $1.98 |
||
|
38
|
38
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
38
|
38
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
39
|
39
90119-05062-00 Bolt, With Washer |
90119-05062-00 |
from US $1.70 |
||
| replacement | |||||
|
39
|
39
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.39 |
||
|
40
|
40
5FJ-F5886-00-00 Holder, Brake Hose |
5FJ-F5886-00-00 |
from US $1.30 |
||
|
41
|
41
9580L-06012-00 Bolt, Flange |
9580L-06012-00 |
from US $1.98 |
||
|
42
|
42
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
42
|
42
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
43
|
43
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
43
|
43
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
44
|
44
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
44
|
44
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
45
|
45
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
46
|
46
901-79256-15-00
Nut
|
901-79256-15-00 |
— | ||
| replacement | |||||
|
46
|
46
901-79258-11-00 Nut |
901-79258-11-00 |
from US $5.44 |
||
|
47
|
47
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
48
|
48
4VP-F3418-00-00 Washer, Special |
4VP-F3418-00-00 |
from US $2.59 |
||
|
49
|
49
4TE-F3416-00-00 Cover, Ball Race 2 |
4TE-F3416-00-00 |
from US $0.58 |
||
|
50
|
50
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
50
|
50
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
51
|
51
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
52
|
52
3UH-W2341-01-00 Race Ball Kit |
3UH-W2341-01-00 |
US $41.59 |
||
