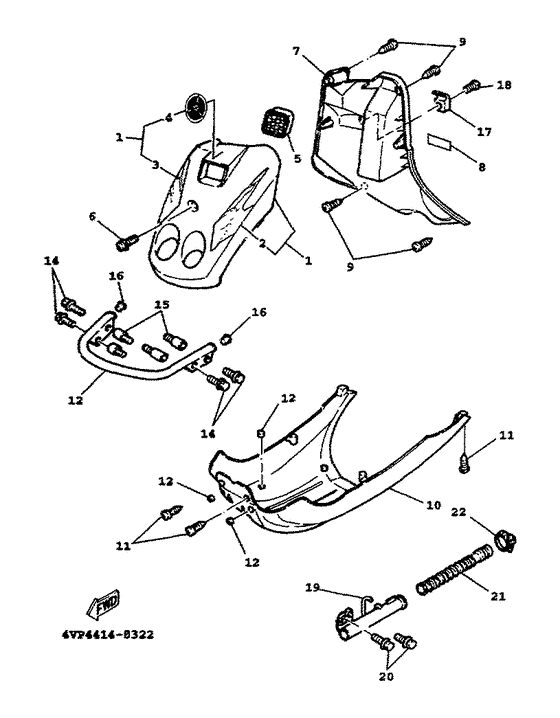

Lbg shield Diagram Yamaha YW100 BW'S
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5JY2
- Sales region
- General (999)
- Engine Capacity
- 100
- Model
- YW100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4VP-X2831-40-P2
Leg shield 1
(ur vivid red metallic) |
4VP-X2831-40-P2 |
— | ||
|
01
|
01
4VP-X2831-40-P3
Leg shield 1
(ur vivid yellow solid) |
4VP-X2831-40-P3 |
— | ||
|
01
|
01
4VP-X2831-70-P0
Leg shield 1
(ur deep purplish blue) |
4VP-X2831-70-P0 |
— | ||
|
02
|
02
4VP-F832D-00-00
Graphic 17
(ur deep purplish blue) |
4VP-F832D-00-00 |
— | ||
|
02
|
02
4VP-F832D-20-00
Graphic 17
(ur vivid yellow solid) |
4VP-F832D-20-00 |
— | ||
|
02
|
02
4VP-F832D-30-00
Graphic 17
(ur vivid red metallic) |
4VP-F832D-30-00 |
— | ||
|
03
|
03
4VP-F832C-00-00
Graphic 1
(ur deep purplish blue) |
4VP-F832C-00-00 |
— | ||
|
03
|
03
4VP-F832C-20-00
Graphic 1
(ur vivid yellow solid) |
4VP-F832C-20-00 |
— | ||
|
03
|
03
4VP-F832C-30-00
Graphic 1
(ur vivid red metallic) |
4VP-F832C-30-00 |
— | ||
|
04
|
04
4UF-F476G-00-00
Emblem 2
|
4UF-F476G-00-00 |
— | ||
|
05
|
05
4VP-F834V-00-00 Protector 1 |
4VP-F834V-00-00 |
from US $2.92 |
||
|
06
|
06
90159-06812-00 Screw, With Washer |
90159-06812-00 |
from US $3.47 |
||
|
07
|
07
4VP-F8300-00-00 Leg Shield Assy |
4VP-F8300-00-00 |
US $147.83 |
||
| replacement | |||||
|
07
|
07
4VP-F8300-01-00 Leg Shield Assy |
4VP-F8300-01-00 |
from US $42.30 |
||
|
08
|
08
4JK-F1568-00-00 Label, Warning |
4JK-F1568-00-00 |
US $1.56 |
||
| replacement | |||||
|
08
|
08
4JK-F1568-00-0F Label, Warning |
4JK-F1568-00-0F |
US $1.62 |
||
|
09
|
09
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
09
|
09
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
10
|
10
4VP-F8385-11-00 Cover, Lower |
4VP-F8385-11-00 |
US $105.14 |
||
|
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
11
|
11
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
12
|
12
3GF-F6199-00-00 Plug, Blind |
3GF-F6199-00-00 |
from US $0.76 |
||
|
13
|
13
4VP-F840K-00-1V Guard Comp |
4VP-F840K-00-1V |
US $118.96 |
||
|
14
|
14
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
15
|
15
4VP-F1535-00-00 Nut 1 |
4VP-F1535-00-00 |
US $9.92 |
||
|
16
|
16
90338-16148-00 Plug |
90338-16148-00 |
from US $2.09 |
||
|
17
|
17
4VP-F8257-01-00 Hook 1 |
4VP-F8257-01-00 |
US $5.38 |
||
|
18
|
18
90159-06812-00 Screw, With Washer |
90159-06812-00 |
from US $3.47 |
||
|
19
|
19
4VP-F838K-00-00 Box 1 |
4VP-F838K-00-00 |
US $35.55 |
||
|
20
|
20
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
20
|
20
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
21
|
21
4VP-F1851-00-00 Duct, Cooler |
4VP-F1851-00-00 |
US $43.11 |
||
|
22
|
22
90460-35260-00 Clamp, Hose |
90460-35260-00 |
from US $4.56 |
||
