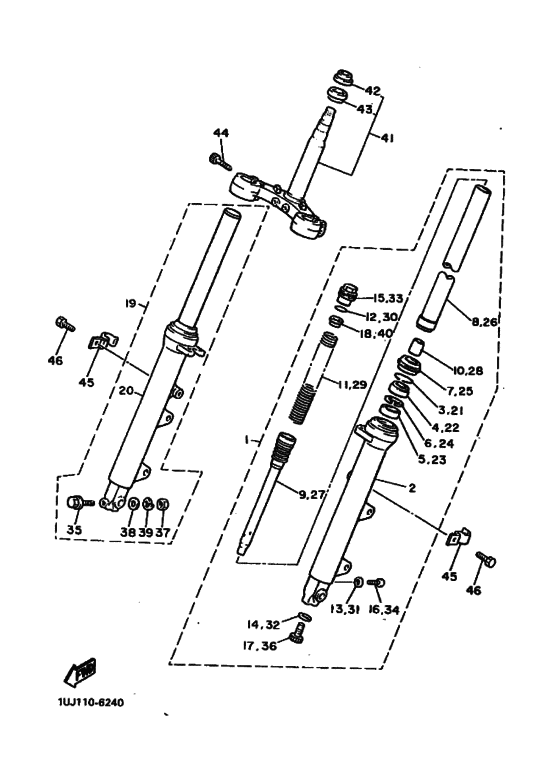

Front fork Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UJ-23102-00-00
Front Fork Assembly L (L.h)
|
1UJ-23102-00-00 |
— | ||
|
2
|
2
1JK-23126-00-00
Tube, Outer (L.h)
|
1JK-23126-00-00 |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
4
|
4
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
4
|
4
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
5
|
5
30X-23125-00-00 Metal, Slide 1 |
30X-23125-00-00 |
from US $29.13 |
||
|
6
|
6
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
7
|
7
33M-23144-00-00 Seal, Dust (15R-23144-00) |
33M-23144-00-00 |
from US $29.36 |
||
|
8
|
8
1UJ-23110-00-00
Inner Tube 1
|
1UJ-23110-00-00 |
— | ||
|
9
|
9
1UJ-23170-00-00
Cylinder, Frtfrk
|
1UJ-23170-00-00 |
— | ||
|
10
|
10
3R6-23173-L0-00 Spindle, Taper |
3R6-23173-L0-00 |
from US $12.61 |
||
| replacement | |||||
|
10
|
10
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
11
|
11
1UJ-23141-00-00
Spring, Front Fork
|
1UJ-23141-00-00 |
— | ||
|
12
|
12
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
13
|
13
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
14
|
14
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
15
|
15
53Y-23111-00-00
Bolt, Cap
|
53Y-23111-00-00 |
— | ||
|
16
|
16
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
16
|
16
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
16
|
16
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
17
|
17
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
17
|
17
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
18
|
18
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
19
|
19
1UJ-23103-00-00
Front Fork Assembly R (R.h)
|
1UJ-23103-00-00 |
— | ||
|
20
|
20
1JK-23136-00-00
Tube, Outer 2
|
1JK-23136-00-00 |
— | ||
|
21
|
21
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
22
|
22
49A-23145-00-00 Oil Seal |
49A-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
22
|
22
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
23
|
23
30X-23125-00-00 Metal, Slide 1 |
30X-23125-00-00 |
from US $29.13 |
||
|
24
|
24
5K5-23149-00-00 Washer, Spring Upper |
5K5-23149-00-00 |
from US $6.66 |
||
|
25
|
25
33M-23144-00-00 Seal, Dust (15R-23144-00) |
33M-23144-00-00 |
from US $29.36 |
||
|
26
|
26
1UJ-23110-00-00
Inner Tube 1
|
1UJ-23110-00-00 |
— | ||
|
27
|
27
1UJ-23170-00-00
Cylinder, Frtfrk
|
1UJ-23170-00-00 |
— | ||
|
28
|
28
3R6-23173-L0-00 Spindle, Taper |
3R6-23173-L0-00 |
from US $12.61 |
||
| replacement | |||||
|
28
|
28
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
29
|
29
1UJ-23141-00-00
Spring, Front Fork
|
1UJ-23141-00-00 |
— | ||
|
30
|
30
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
31
|
31
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
32
|
32
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
33
|
33
53Y-23111-00-00
Bolt, Cap
|
53Y-23111-00-00 |
— | ||
|
34
|
34
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
34
|
34
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
34
|
34
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
35
|
35
1UJ-23128-00-00
Bolt, Axle Holder
|
1UJ-23128-00-00 |
— | ||
|
36
|
36
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
36
|
36
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
37
|
37
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
37
|
37
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
38
|
38
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
38
|
38
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
40
|
40
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
41
|
41
1UJ-23340-00-00
Under Bracket
|
1UJ-23340-00-00 |
— | ||
|
42
|
42
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
42
|
42
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
43
|
43
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
44
|
44
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
44
|
44
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
45
|
45
1JK-21524-00-00
Plate 2
|
1JK-21524-00-00 |
— | ||
|
46
|
46
90110-06145-00 Bolt, Hexagon Socket Head |
90110-06145-00 |
from US $1.21 |
||
| replacement | |||||
|
46
|
46
91314-06012-00 Bolt, Hexagon Socket Head |
91314-06012-00 |
from US $1.21 |
||
