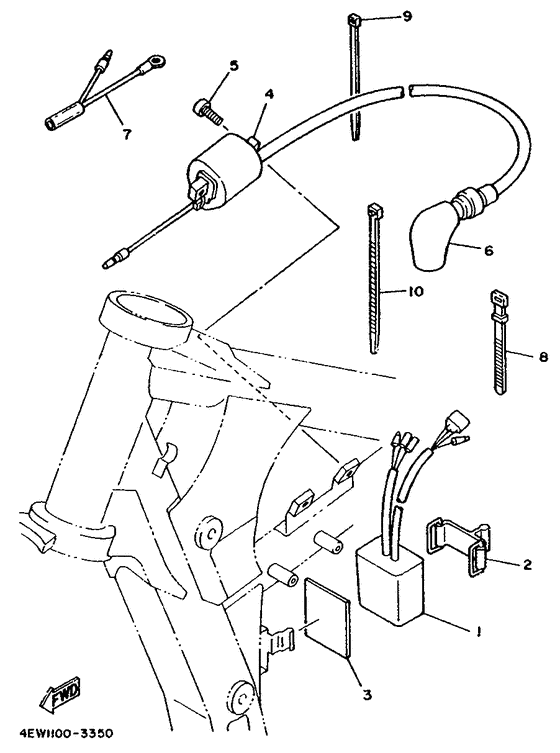

Electrical 1 Diagram Yamaha YZ250 YZ250
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4EW4
- Sales region
- Oceania (999)
- Базовая модель
- YZ250E
- Engine Capacity
- 250
- Model
- YZ250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4EW-85540-00-00
C.d.i. Unit Assembly
|
4EW-85540-00-00 |
— | ||
|
02
|
02
5H9-21376-00-00 Band, Tool |
5H9-21376-00-00 |
from US $4.57 |
||
|
03
|
03
3RB-85547-01-00
Damper
|
3RB-85547-01-00 |
— | ||
|
04
|
04
3SR-82310-10-00
Ignition Coil Assy
|
3SR-82310-10-00 |
— | ||
|
05
|
05
970-11060-16-00
Bolt(3Ap)
|
970-11060-16-00 |
— | ||
| replacements | |||||
|
05
|
05
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
05
|
05
97014-06016-00 Bolt, Hexagon |
97014-06016-00 |
from US $1.39 |
||
|
05
|
05
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
06
|
06
2TV-82370-00-00
Plug Cap Assembly
Whit noise supressor |
2TV-82370-00-00 |
— | ||
| replacement | |||||
|
06
|
06
8DG-82370-00-00 Plug Cap AssyWhit noise supressor |
8DG-82370-00-00 |
from US $28.34 |
||
|
07
|
07
5X1-82519-01-00
Wire, Earth Lead
|
5X1-82519-01-00 |
— | ||
|
08
|
08
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
09
|
09
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
09
|
09
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
10
|
10
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
