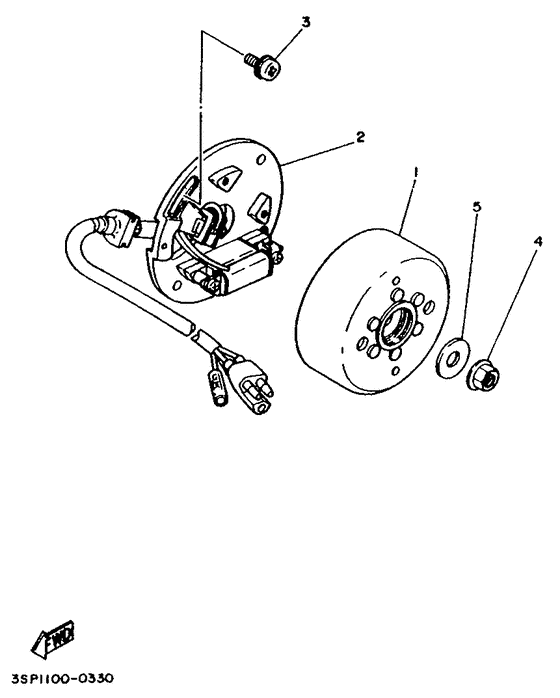

Generator Diagram Yamaha YZ250 YZ250
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4EW4
- Sales region
- Oceania (999)
- Базовая модель
- YZ250E
- Engine Capacity
- 250
- Model
- YZ250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3SP-85550-10-00 Rotor Assembly |
3SP-85550-10-00 |
from US $347.12 |
||
|
02
|
02
3SP-85560-11-00
Base Assembly
|
3SP-85560-11-00 |
— | ||
|
03
|
03
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
04
|
04
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
05
|
05
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.52 |
