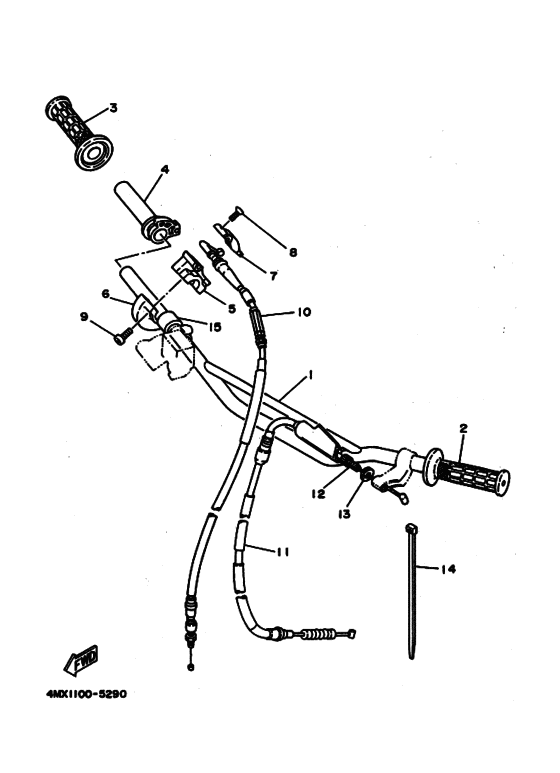

Steering handle & cable Diagram Yamaha YZ250 YZ250
- Year
- 1995
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MX2
- Sales region
- Europe (020)
- Базовая модель
- YZ250 YZ250G
- Engine Capacity
- 250
- Color Variant
- A
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JX-26111-00-00
Handlebar
|
4JX-26111-00-00 |
— | ||
|
2
|
2
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
3
|
3
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
4
|
4
23X-26243-00-00 Tube, Throttle Guide |
23X-26243-00-00 |
from US $16.13 |
||
| replacement | |||||
|
4
|
4
23X-26243-01-00 Tube, Throttle Guide |
23X-26243-01-00 |
from US $16.81 |
||
|
5
|
5
23X-26281-00-00 Cap, Grip Upper |
23X-26281-00-00 |
from US $29.74 |
||
| replacement | |||||
|
5
|
5
23X-26281-01-00 Cap, Grip Upper |
23X-26281-01-00 |
from US $30.06 |
||
|
6
|
6
431-26282-02-00 Cap, Grip Under |
431-26282-02-00 |
from US $41.40 |
||
| replacement | |||||
|
6
|
6
431-26282-03-00 Cap, Grip Under |
431-26282-03-00 |
from US $41.83 |
||
|
7
|
7
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $9.57 |
||
|
8
|
8
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
9
|
9
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
10
|
10
4MX-26311-00-00
Cable, Throttle 1
|
4MX-26311-00-00 |
— | ||
|
11
|
11
4EW-26335-00-00 Cable, clutch |
4EW-26335-00-00 |
from US $37.44 |
||
|
12
|
12
90123-08090-00 Bolt |
90123-08090-00 |
from US $12.75 |
||
|
13
|
13
90179-08401-00
Nut
|
90179-08401-00 |
— | ||
| replacements | |||||
|
13
|
13
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
13
|
13
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
14
|
14
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
14
|
14
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
15
|
15
90560-22281-00 Spacer |
90560-22281-00 |
from US $8.64 |
||
