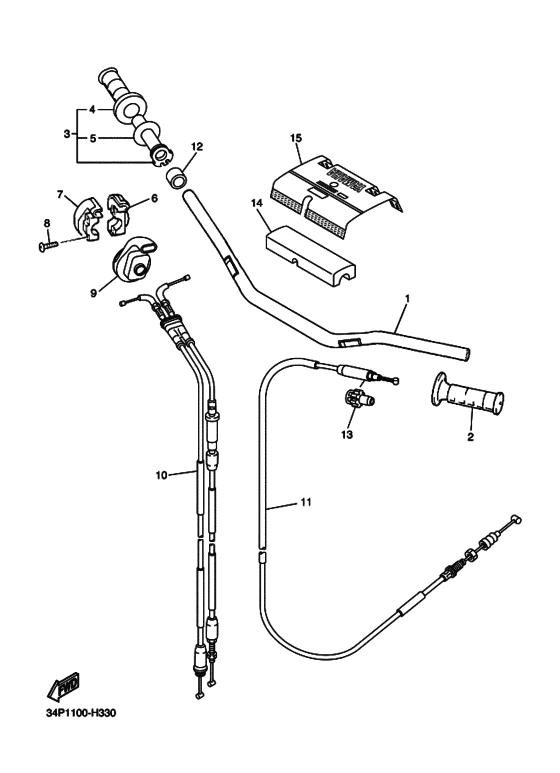

Steering handle & cable Diagram Yamaha YZ450F YZ450F
- Year
- 2009
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 34P2
- Sales region
- Europe (010)
- Базовая модель
- YZ450F
- Engine Capacity
- 450
- Color Variant
- A
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XC-26111-L0-00 Handlebar |
5XC-26111-L0-00 |
from US $232.11 |
||
| replacement | |||||
|
1
|
1
5XC-26111-L2-00 Handlebar |
5XC-26111-L2-00 |
from US $232.11 |
||
|
2
|
2
4GY-26241-00-00 Grip |
4GY-26241-00-00 |
from US $14.84 |
||
|
3
|
3
5TJ-26240-C0-00 Grip Assy |
5TJ-26240-C0-00 |
from US $36.20 |
||
|
4
|
4
4GY-26242-00-00 Grip (Right) |
4GY-26242-00-00 |
from US $14.84 |
||
|
5
|
5
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $3.59 |
||
|
6
|
6
5BE-26281-00-00 Cap, Grip Upper |
5BE-26281-00-00 |
from US $27.77 |
||
| replacement | |||||
|
6
|
6
5BE-26281-01-00 Cap, Grip Upper |
5BE-26281-01-00 |
from US $27.77 |
||
|
7
|
7
5BE-26282-00-00 Cap, Grip Under |
5BE-26282-00-00 |
from US $34.99 |
||
|
8
|
8
98502-05020-00 Screw, Pan Head |
98502-05020-00 |
US $1.84 |
||
| replacement | |||||
|
8
|
8
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
9
|
9
5SF-26287-10-00 Cover, Cap Grip |
5SF-26287-10-00 |
from US $11.10 |
||
| replacement | |||||
|
9
|
9
5SF-26287-11-00 Cover, Cap Grip |
5SF-26287-11-00 |
from US $11.10 |
||
|
10
|
10
34P-26302-00-00 Throttle Cable Assy |
34P-26302-00-00 |
from US $88.42 |
||
|
11
|
11
34P-26335-00-00 Cable, clutch |
34P-26335-00-00 |
from US $22.90 |
||
|
12
|
12
90387-225N2-00 Collar |
90387-225N2-00 |
from US $10.34 |
||
|
13
|
13
34P-26342-00-00 Boot, Cable |
34P-26342-00-00 |
from US $6.80 |
||
|
14
|
14
17D-26124-00-00 Protector, Handlebar |
17D-26124-00-00 |
from US $29.75 |
||
|
15
|
15
5XC-26143-L0-00 Cover, Handle Upper 1UR FOR DPBSE |
5XC-26143-L0-00 |
from US $52.64 |
||
