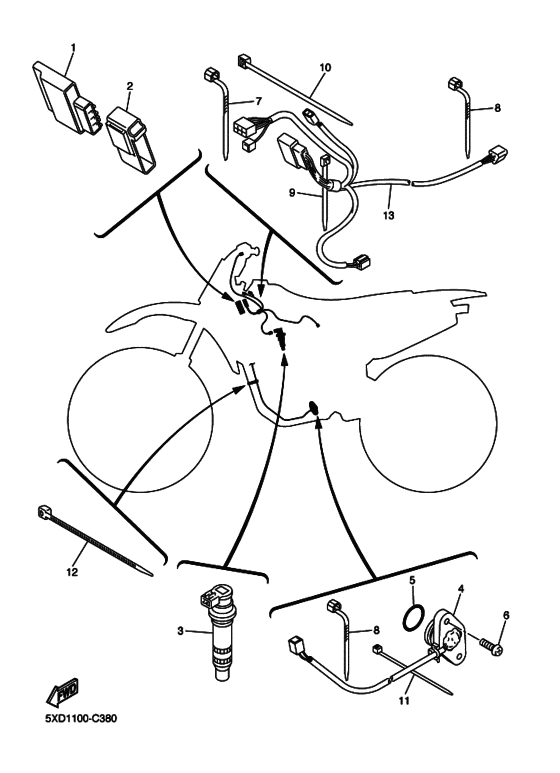

Electrical 1 Diagram Yamaha YZ450F YZ450F
- Year
- 2004
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5XD4
- Sales region
- Europe (020)
- Базовая модель
- YZ450F YZ450FS
- Engine Capacity
- 450
- Color Variant
- A
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XD-85540-10-00
C.d.i. Unit Assy
|
5XD-85540-10-00 |
— | ||
|
2
|
2
5XD-85546-00-00 Band |
5XD-85546-00-00 |
US $9.88 |
||
|
3
|
3
5TA-82310-10-00 Ignition Coil Assy |
5TA-82310-10-00 |
from US $114.80 |
||
|
4
|
4
5TA-82540-00-00
Neutral Switch Assy
|
5TA-82540-00-00 |
— | ||
|
5
|
5
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.81 |
||
| replacement | |||||
|
5
|
5
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.81 |
||
|
6
|
6
90154-05026-00 Screw, Bind |
90154-05026-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
|
7
|
7
904-64130-77-00
Clamp
|
904-64130-77-00 |
— | ||
| replacement | |||||
|
7
|
7
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
8
|
8
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
8
|
8
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
9
|
9
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
9
|
9
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
10
|
10
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
10
|
10
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
11
|
11
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
12
|
12
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
13
|
13
5XD-82509-00-00
Wire, Sub Lead
|
5XD-82509-00-00 |
— | ||
| replacement | |||||
|
13
|
13
5XD-82509-01-00 Wire, Sub Lead |
5XD-82509-01-00 |
US $191.75 |
||
