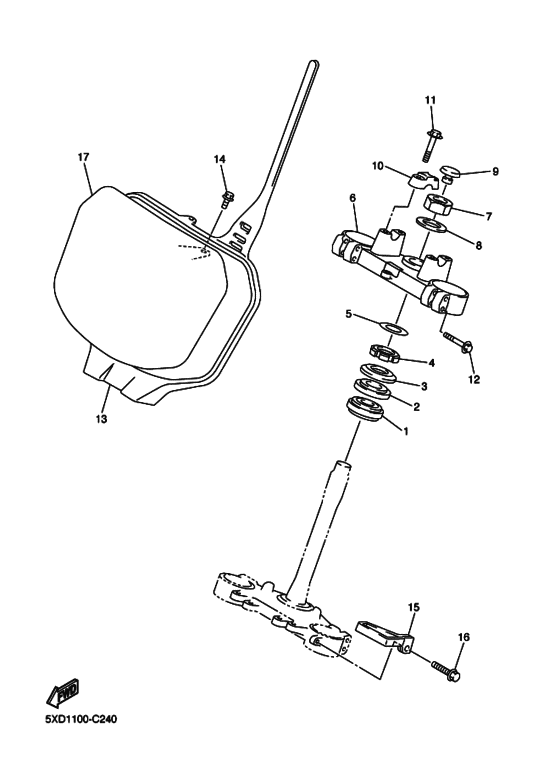

Steering Diagram Yamaha YZ450F YZ450F
- Year
- 2004
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5XD4
- Sales region
- Europe (020)
- Базовая модель
- YZ450F YZ450FS
- Engine Capacity
- 450
- Color Variant
- A
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00081-00 Bearing |
93332-00081-00 |
from US $50.98 |
||
|
2
|
2
93332-00068-00 Bearing |
93332-00068-00 |
from US $50.98 |
||
| replacement | |||||
|
2
|
2
93332-00078-00 Bearing(4Ew) |
93332-00078-00 |
from US $50.98 |
||
|
3
|
3
4EW-23416-00-00 Cover, Ball Race 2 |
4EW-23416-00-00 |
from US $11.80 |
||
|
4
|
4
90179-28003-00 Nut |
90179-28003-00 |
from US $19.69 |
||
| replacement | |||||
|
4
|
4
90179-28013-00 Nut |
90179-28013-00 |
from US $19.69 |
||
|
5
|
5
90201-286K9-00 Washer, Plate (T1.0) |
90201-286K9-00 |
from US $1.98 |
||
|
6
|
6
5XE-23435-00-00 Crown, Handle |
5XE-23435-00-00 |
US $271.53 |
||
|
7
|
7
5TA-23357-00-00 Nut |
5TA-23357-00-00 |
from US $21.39 |
||
|
8
|
8
90201-247L2-00 Washer, Plate |
90201-247L2-00 |
from US $7.37 |
||
|
9
|
9
5TJ-2319U-00-00 Cap |
5TJ-2319U-00-00 |
US $2.81 |
||
|
10
|
10
5XE-23441-00-00 Holder, Handle Upper |
5XE-23441-00-00 |
from US $20.97 |
||
|
11
|
11
95027-08035-00 Bolt, Flange |
95027-08035-00 |
from US $1.56 |
||
|
12
|
12
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
13
|
13
5HD-23485-00-00 Plate, Number |
5HD-23485-00-00 |
from US $27.36 |
||
| replacement | |||||
|
13
|
13
5HD-23485-01-00 Plate, Number |
5HD-23485-01-00 |
US $20.54 |
||
|
14
|
14
950-27060-14-00 Bolt, Flange |
950-27060-14-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.52 |
||
|
15
|
15
5XE-23389-00-00 Guide, Cable |
5XE-23389-00-00 |
from US $3.83 |
||
|
16
|
16
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
17
|
17
5HD-2339E-00-00 Graphic 1 |
5HD-2339E-00-00 |
from US $59.95 |
||
| replacement | |||||
|
17
|
17
5HD-2339E-09-00 Graphic 1 |
5HD-2339E-09-00 |
from US $59.95 |
||
