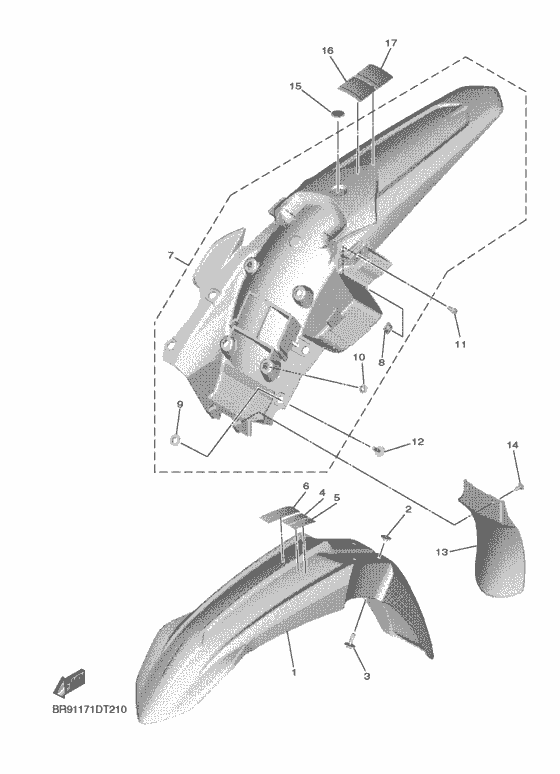

Fender Diagram Yamaha YZ450F YZ450F
- Year
- 2018
- Colour
- Purplish White Solid 1
- Model code
- BR91
- Sales region
- Canada (020)
- Базовая модель
- YZ450F
- Engine Capacity
- 450
- Color Variant
- B
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BR9-21511-10-00 Fender, FrontUR FOR PWS1 |
BR9-21511-10-00 |
from US $35.70 |
||
|
2
|
2
903-87062-59-00 Collar |
903-87062-59-00 |
from US $4.99 |
||
|
3
|
3
901-19062-68-00 Bolt, With Washer |
901-19062-68-00 |
from US $1.35 |
||
|
4
|
4
3FB-2415E-02-00 Label, Caution |
3FB-2415E-02-00 |
from US $4.53 |
||
|
5
|
5
3FB-2415E-12-00 Label, Caution |
3FB-2415E-12-00 |
from US $3.26 |
||
|
6
|
6
4SR-2416E-00-00 Label, Caution Canada |
4SR-2416E-00-00 |
US $2.98 |
||
|
7
|
7
BR9-21610-10-00 Rear Fender CompUR FOR PWS1 |
BR9-21610-10-00 |
from US $86.90 |
||
|
8
|
8
5XE-21635-10-00 Nut, Rear Fender |
5XE-21635-10-00 |
from US $6.52 |
||
|
9
|
9
5BE-21749-00-00 Collar |
5BE-21749-00-00 |
from US $3.40 |
||
|
10
|
10
903-87080-86-00 Collar |
903-87080-86-00 |
from US $3.68 |
||
|
11
|
11
90105-06100-00 Bolt, Flange |
90105-06100-00 |
from US $1.81 |
||
|
12
|
12
901-19062-68-00 Bolt, With Washer |
901-19062-68-00 |
from US $1.35 |
||
|
13
|
13
3D7-21642-00-00 Guard, Flap |
3D7-21642-00-00 |
from US $27.77 |
||
|
14
|
14
97702-60016-00 Screw, Tapping |
97702-60016-00 |
from US $1.56 |
||
|
15
|
15
5FK-2175C-30-00 Tuning Fork Mark |
5FK-2175C-30-00 |
from US $3.97 |
||
| replacement | |||||
|
15
|
15
5FK-2175C-31-00 Tuning Fork Mark |
5FK-2175C-31-00 |
from US $3.97 |
||
|
16
|
16
5PA-2118K-00-00 Label, Caution |
5PA-2118K-00-00 |
from US $9.41 |
||
|
17
|
17
5PA-2118K-10-00 Label, Caution |
5PA-2118K-10-00 |
US $11.19 |
||
