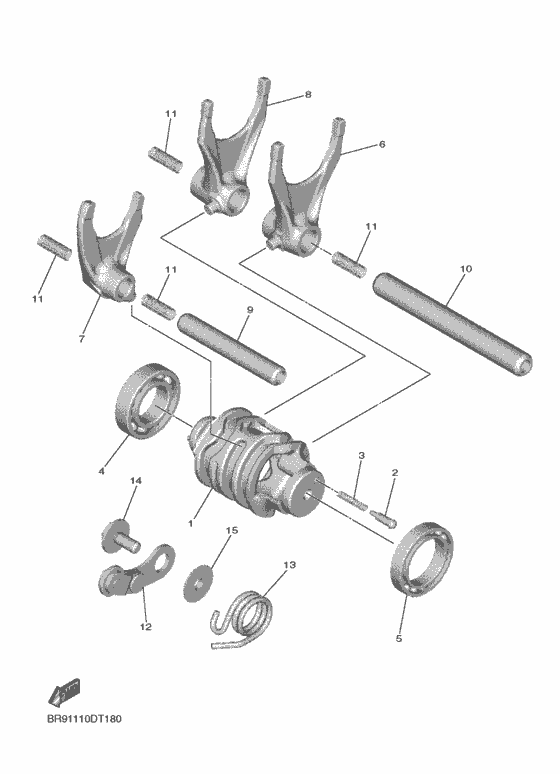

Shift Cam & Fork Diagram Yamaha YZ450F YZ450F
- Year
- 2018
- Colour
- Deep Purplish Blue Solid E
- Model code
- BR93
- Sales region
- Japan (010)
- Базовая модель
- YZ450F
- Engine Capacity
- 450
- Color Variant
- A
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BR9-18541-10-00 Cam, Shift |
BR9-18541-10-00 |
from US $81.38 |
||
|
2
|
2
3D7-18542-00-00 Point, Neutral |
3D7-18542-00-00 |
from US $5.74 |
||
|
3
|
3
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.70 |
||
|
4
|
4
93306-90409-00 Bearing |
93306-90409-00 |
from US $13.18 |
||
|
5
|
5
933-06805-02-00 Bearing |
933-06805-02-00 |
from US $13.31 |
||
|
6
|
6
1SL-18511-00-00 Fork, Shift 1 |
1SL-18511-00-00 |
from US $42.97 |
||
|
7
|
7
1SL-18512-00-00 Fork, Shift 2 |
1SL-18512-00-00 |
from US $44.02 |
||
|
8
|
8
1SL-18513-00-00 Fork, Shift 3 |
1SL-18513-00-00 |
from US $47.95 |
||
|
9
|
9
1SL-18531-00-00 Bar, Shift Fork Guide 1 |
1SL-18531-00-00 |
from US $14.73 |
||
|
10
|
10
1SL-18535-00-00 Bar, Shift Fork Guide 2 |
1SL-18535-00-00 |
from US $18.56 |
||
|
11
|
11
90501-064L1-00 Spring, Compression |
90501-064L1-00 |
from US $1.70 |
||
|
12
|
12
2GB-18140-10-00 Stopper Lever Assy |
2GB-18140-10-00 |
from US $23.38 |
||
|
13
|
13
90508-29041-00 Spring, Torsion |
90508-29041-00 |
from US $3.68 |
||
|
14
|
14
90159-06027-00 Screw, With Washer |
90159-06027-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
901-59060-28-00 Screw, With Washer |
901-59060-28-00 |
from US $1.56 |
||
|
15
|
15
33D-18175-00-00 Spacer |
33D-18175-00-00 |
from US $7.65 |
||
