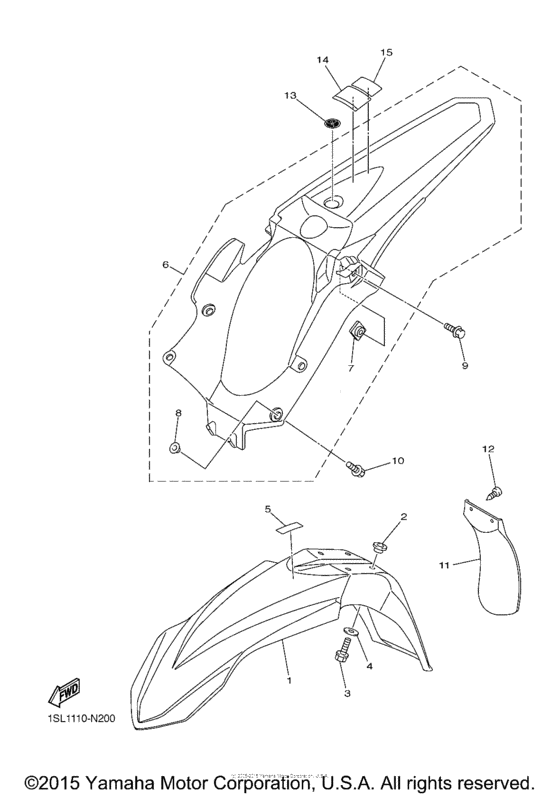

Fender Diagram Yamaha YZ450F YZ450F
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YZ450FFL
- Engine Capacity
- 450
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17D-21511-50-00 Fender, Frontfor Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
17D-21511-50-00 |
from US $41.89 |
||
|
1
|
1
17D-21511-60-00 Fender, Frontfor Color PURPLISH WHITE SOLID 1 PWS1 / 0206 |
17D-21511-60-00 |
from US $44.17 |
||
|
2
|
2
903-87062-59-00 Collar |
903-87062-59-00 |
from US $4.99 |
||
|
3
|
3
90105-06127-00 Bolt, Flange |
90105-06127-00 |
from US $1.70 |
||
|
4
|
4
902-01061-08-00 Washer, Plate |
902-01061-08-00 |
from US $1.98 |
||
|
5
|
5
3FB-2415E-02-00 Label, Caution |
3FB-2415E-02-00 |
from US $4.53 |
||
|
6
|
6
1SL-21610-10-00 Rear Fender Compfor Color PURPLISH WHITE SOLID 1 PWS1 / 0206 |
1SL-21610-10-00 |
from US $78.50 |
||
|
6
|
6
1SL-21610-00-00 Rear Fender Compfor Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
1SL-21610-00-00 |
from US $51.64 |
||
|
7
|
7
5XE-21635-10-00 Nut, Rear Fender |
5XE-21635-10-00 |
from US $6.52 |
||
|
8
|
8
5BE-21749-00-00 Collar |
5BE-21749-00-00 |
from US $3.40 |
||
|
9
|
9
90105-06100-00 Bolt, Flange |
90105-06100-00 |
from US $1.81 |
||
|
10
|
10
901-19062-68-00 Bolt, With Washer |
901-19062-68-00 |
from US $1.35 |
||
|
11
|
11
17D-21642-00-00 Guard, Flap |
17D-21642-00-00 |
from US $12.75 |
||
|
12
|
12
97702-60016-00 Screw, Tapping |
97702-60016-00 |
from US $1.56 |
||
|
13
|
13
5FK-2175C-30-00 Tuning Fork Mark |
5FK-2175C-30-00 |
from US $3.97 |
||
| replacement | |||||
|
13
|
13
5FK-2175C-31-00 Tuning Fork Mark |
5FK-2175C-31-00 |
from US $3.97 |
||
|
14
|
14
5PA-2118K-00-00 Label, Caution |
5PA-2118K-00-00 |
from US $9.41 |
||
|
15
|
15
17D-2812P-00-00 Plate, Competition Usa |
17D-2812P-00-00 |
from US $1.42 |
||
