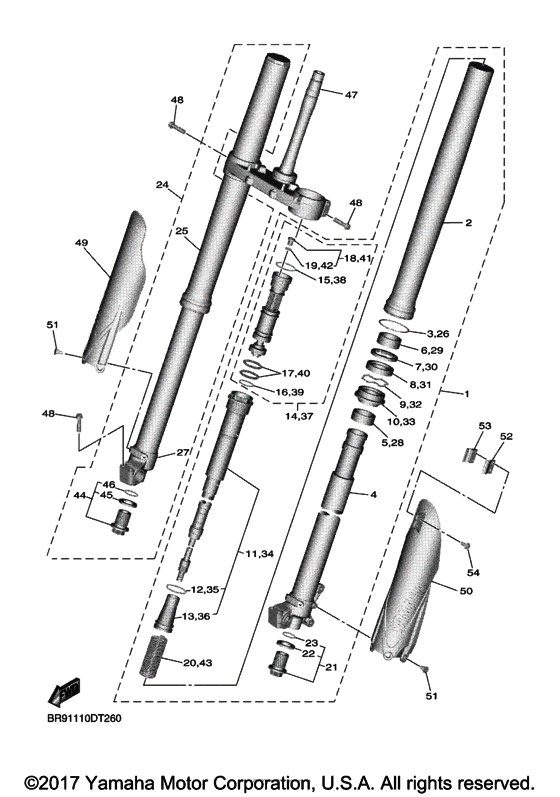

Front fork Diagram Yamaha YZ450F YZ450F
- Year
- 2018
- Sales region
- USA
- Базовая модель
- YZ450FJL
- Engine Capacity
- 450
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BR9-23102-00-00 Front Fork Assy (L.h) |
BR9-23102-00-00 |
from US $1,287.82 |
||
|
2
|
2
33D-23136-00-00 Tube, Outer (Right) |
33D-23136-00-00 |
from US $553.78 |
||
|
3
|
3
17D-23153-00-00 Ring, Snap |
17D-23153-00-00 |
from US $2.98 |
||
|
4
|
4
1SL-23120-10-00 Inner Tube Comp.2 |
1SL-23120-10-00 |
from US $437.84 |
||
|
5
|
5
5XE-23171-L0-00 Piston, Front Fork |
5XE-23171-L0-00 |
from US $18.86 |
||
|
6
|
6
5XE-23125-L0-00 Metal, Slide 1 |
5XE-23125-L0-00 |
from US $13.87 |
||
|
7
|
7
5XC-23146-10-00 Washer, Oil Seal |
5XC-23146-10-00 |
from US $9.21 |
||
|
8
|
8
B29-23145-00-00 OIL SEAL |
B29-23145-00-00 |
from US $17.52 |
||
|
9
|
9
5XE-23153-L0-00 Ring, Snap |
5XE-23153-L0-00 |
from US $2.41 |
||
|
10
|
10
5XE-23144-L0-00 Seal, Dust |
5XE-23144-L0-00 |
from US $15.84 |
||
|
11
|
11
BR9-23170-00-00 Cylinder Comp., Front Fork |
BR9-23170-00-00 |
US $763.22 |
||
|
12
|
12
1C3-23147-L0-00 O-Ring |
1C3-23147-L0-00 |
from US $2.34 |
||
|
13
|
13
BR9-23142-00-00 Seat, Spring Upper |
BR9-23142-00-00 |
from US $39.79 |
||
|
14
|
14
BR9-2316A-00-00 Valve Comp |
BR9-2316A-00-00 |
US $350.87 |
||
|
15
|
15
1C3-23188-L0-00 O-Ring |
1C3-23188-L0-00 |
from US $2.38 |
||
| replacement | |||||
|
15
|
15
1C3-23188-L1-00 O-Ring |
1C3-23188-L1-00 |
from US $2.98 |
||
|
16
|
16
1C3-23188-P0-00 O-Ring |
1C3-23188-P0-00 |
from US $2.98 |
||
|
17
|
17
1AE-23147-00-00 O-Ring |
1AE-23147-00-00 |
from US $2.34 |
||
| replacement | |||||
|
17
|
17
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
18
|
18
1C3-23190-L0-00 Air Valve Comp |
1C3-23190-L0-00 |
from US $16.43 |
||
| replacement | |||||
|
18
|
18
1C3-23190-L1-00 Air Valve Comp. |
1C3-23190-L1-00 |
from US $16.43 |
||
|
19
|
19
1C3-23188-R0-00 O-Ring |
1C3-23188-R0-00 |
from US $2.38 |
||
| replacement | |||||
|
19
|
19
1C3-23188-R1-00 O-Ring |
1C3-23188-R1-00 |
from US $2.98 |
||
|
20
|
20
BR9-23141-00-00 Spring, Front Fork (K=5.0) |
BR9-23141-00-00 |
from US $151.98 |
||
| replacement | |||||
|
20
|
20
BR9-23141-70-00 Spring, Front Fork (K=5.0) |
BR9-23141-70-00 |
from US $151.98 |
||
|
21
|
21
5XC-23111-00-00 Bolt, Cap |
5XC-23111-00-00 |
from US $65.90 |
||
| replacement | |||||
|
21
|
21
5XC-23111-01-00 |
5XC-23111-01-00 |
from US $65.90 |
||
|
22
|
22
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
23
|
23
276-23114-00-00
Gasket
|
276-23114-00-00 |
— | ||
| replacement | |||||
|
23
|
23
276-23114-01-00 Gasket |
276-23114-01-00 |
from US $1.21 |
||
|
24
|
24
BR9-23103-00-00 Front Fork Assy (R.h) |
BR9-23103-00-00 |
from US $1,047.37 |
||
|
25
|
25
33D-23136-00-00 Tube, Outer (Right) |
33D-23136-00-00 |
from US $553.78 |
||
|
26
|
26
17D-23153-00-00 Ring, Snap |
17D-23153-00-00 |
from US $2.98 |
||
|
27
|
27
1SL-23110-10-00 Inner Tube Comp.1 |
1SL-23110-10-00 |
from US $437.84 |
||
|
28
|
28
5XE-23171-L0-00 Piston, Front Fork |
5XE-23171-L0-00 |
from US $18.86 |
||
|
29
|
29
5XE-23125-L0-00 Metal, Slide 1 |
5XE-23125-L0-00 |
from US $13.87 |
||
|
30
|
30
5XC-23146-10-00 Washer, Oil Seal |
5XC-23146-10-00 |
from US $9.21 |
||
|
31
|
31
B29-23145-00-00 OIL SEAL |
B29-23145-00-00 |
from US $17.52 |
||
|
32
|
32
5XE-23153-L0-00 Ring, Snap |
5XE-23153-L0-00 |
from US $2.41 |
||
|
33
|
33
5XE-23144-L0-00 Seal, Dust |
5XE-23144-L0-00 |
from US $15.84 |
||
|
34
|
34
BR9-23170-00-00 Cylinder Comp., Front Fork |
BR9-23170-00-00 |
US $763.22 |
||
|
35
|
35
1C3-23147-L0-00 O-Ring |
1C3-23147-L0-00 |
from US $2.34 |
||
|
36
|
36
BR9-23142-00-00 Seat, Spring Upper |
BR9-23142-00-00 |
from US $39.79 |
||
|
37
|
37
BR9-2316A-00-00 Valve Comp |
BR9-2316A-00-00 |
US $350.87 |
||
|
38
|
38
1C3-23188-L0-00 O-Ring |
1C3-23188-L0-00 |
from US $2.38 |
||
| replacement | |||||
|
38
|
38
1C3-23188-L1-00 O-Ring |
1C3-23188-L1-00 |
from US $2.98 |
||
|
39
|
39
1C3-23188-P0-00 O-Ring |
1C3-23188-P0-00 |
from US $2.98 |
||
|
40
|
40
1AE-23147-00-00 O-Ring |
1AE-23147-00-00 |
from US $2.34 |
||
| replacement | |||||
|
40
|
40
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
41
|
41
1C3-23190-L0-00 Air Valve Comp |
1C3-23190-L0-00 |
from US $16.43 |
||
| replacement | |||||
|
41
|
41
1C3-23190-L1-00 Air Valve Comp. |
1C3-23190-L1-00 |
from US $16.43 |
||
|
42
|
42
1C3-23188-R0-00 O-Ring |
1C3-23188-R0-00 |
from US $2.38 |
||
| replacement | |||||
|
42
|
42
1C3-23188-R1-00 O-Ring |
1C3-23188-R1-00 |
from US $2.98 |
||
|
43
|
43
BR9-23141-00-00 Spring, Front Fork (K=5.0) |
BR9-23141-00-00 |
from US $151.98 |
||
| replacement | |||||
|
43
|
43
BR9-23141-70-00 Spring, Front Fork (K=5.0) |
BR9-23141-70-00 |
from US $151.98 |
||
|
44
|
44
5XC-23111-00-00 Bolt, Cap |
5XC-23111-00-00 |
from US $65.90 |
||
| replacement | |||||
|
44
|
44
5XC-23111-01-00 |
5XC-23111-01-00 |
from US $65.90 |
||
|
45
|
45
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
46
|
46
276-23114-00-00
Gasket
|
276-23114-00-00 |
— | ||
| replacement | |||||
|
46
|
46
276-23114-01-00 Gasket |
276-23114-01-00 |
from US $1.21 |
||
|
47
|
47
33D-23340-20-00 UNDER BRACKET COMP. |
33D-23340-20-00 |
from US $526.52 |
||
|
48
|
48
90105-08154-00 Bolt, Flange |
90105-08154-00 |
from US $1.81 |
||
|
49
|
49
17D-2315J-50-00 Protector 2 |
17D-2315J-50-00 |
from US $15.30 |
||
|
50
|
50
17D-2315H-50-00 Protector 1 |
17D-2315H-50-00 |
from US $15.30 |
||
|
51
|
51
90109-06232-00 Bolt |
90109-06232-00 |
from US $3.26 |
||
|
52
|
52
17D-23466-00-00 Clamp |
17D-23466-00-00 |
from US $12.61 |
||
|
53
|
53
17D-23467-00-00 Clamp |
17D-23467-00-00 |
from US $12.61 |
||
|
54
|
54
901-05061-70-00 Bolt, Flange |
901-05061-70-00 |
from US $1.56 |
||
