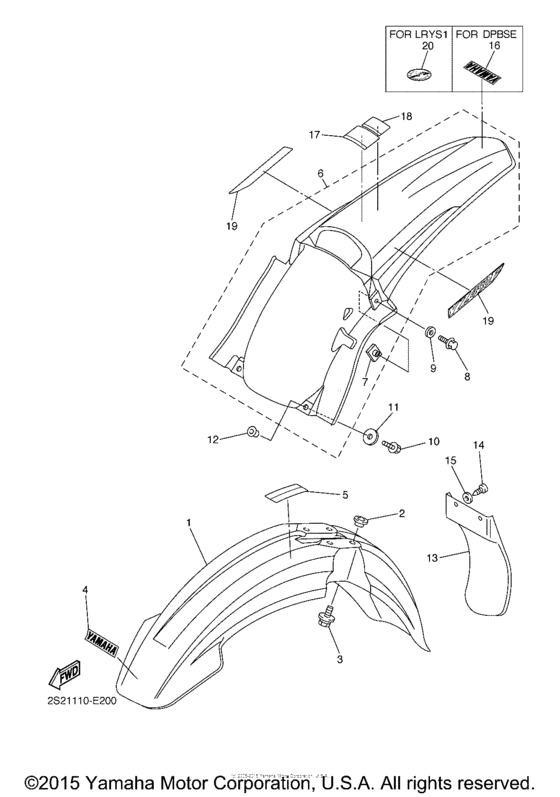

Fender Diagram Yamaha YZ450F YZ450F
- Year
- 2006
- Sales region
- USA
- Базовая модель
- YZ450FV
- Engine Capacity
- 450
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XC-21511-D0-00 Fender, Frontfor Color LIGHT REDDISH YELLOW SOLID 1 LRYS1 / 0386 |
5XC-21511-D0-00 |
from US $63.20 |
||
|
1
|
1
1C3-21511-50-00
Fender, Front
for Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
1C3-21511-50-00 |
— | ||
| replacement | |||||
|
1
|
1
1C3-21511-51-00 Fender, Frontfor Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
1C3-21511-51-00 |
from US $41.89 |
||
|
2
|
2
90387-06090-00 Collar |
90387-06090-00 |
from US $2.91 |
||
|
3
|
3
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
3
|
3
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
4
|
4
4ES-2153E-01-00
Emblem, Yamaha
for Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
4ES-2153E-01-00 |
— | ||
| replacement | |||||
|
4
|
4
4ES-2153E-02-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
4ES-2153E-02-00 |
from US $6.51 |
||
|
4
|
4
4ES-2153E-20-00 Emblem, Yamahafor Color LIGHT REDDISH YELLOW SOLID 1 LRYS1 / 0386 |
4ES-2153E-20-00 |
from US $3.13 |
||
| replacement | |||||
|
4
|
4
4ES-2153E-21-00 for Color LIGHT REDDISH YELLOW SOLID 1 LRYS1 / 0386 |
4ES-2153E-21-00 |
US $4.64 |
||
|
5
|
5
3FB-2415E-01-00 Label, Caution |
3FB-2415E-01-00 |
from US $4.53 |
||
| replacement | |||||
|
5
|
5
3FB-2415E-02-00 Label, Caution |
3FB-2415E-02-00 |
from US $4.53 |
||
|
6
|
6
5XC-21610-D0-00
Rear Fender Comp
for Color LIGHT REDDISH YELLOW SOLID 1 LRYS1 / 0386 |
5XC-21610-D0-00 |
— | ||
|
6
|
6
5XC-21610-90-00 Rear Fender Compfor Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
5XC-21610-90-00 |
from US $51.64 |
||
|
7
|
7
5XE-21635-10-00 Nut, Rear Fender |
5XE-21635-10-00 |
from US $6.52 |
||
|
8
|
8
90105-06090-00 Bolt, Flange |
90105-06090-00 |
from US $1.70 |
||
|
9
|
9
90201-06032-00 Washer, Plate |
90201-06032-00 |
from US $1.70 |
||
|
10
|
10
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
11
|
11
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
12
|
12
90387-06009-00 Collar |
90387-06009-00 |
from US $7.37 |
||
|
13
|
13
5TA-21642-00-00 Guard, Flap |
5TA-21642-00-00 |
from US $11.19 |
||
|
14
|
14
97707-60016-00 Screw, Tapping |
97707-60016-00 |
from US $1.98 |
||
|
15
|
15
90201-06084-00 Washer, Plate |
90201-06084-00 |
from US $2.13 |
||
|
16
|
16
5XC-2153E-00-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
5XC-2153E-00-00 |
from US $1.73 |
||
| replacement | |||||
|
16
|
16
5XC-2153E-01-00 for Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
5XC-2153E-01-00 |
US $2.77 |
||
|
17
|
17
5PA-2118K-00-00 Label, Caution |
5PA-2118K-00-00 |
from US $9.41 |
||
|
18
|
18
3XJ-2151H-A1-00 Label 5 |
3XJ-2151H-A1-00 |
from US $10.76 |
||
|
19
|
19
2S2-2163G-10-00 Emblem 1Use for Color LIGHT REDDISH YELLOW SOLID 1 LRYS1 / 0386 |
2S2-2163G-10-00 |
US $18.13 |
||
|
19
|
19
2S2-2163G-00-00 Emblem 1Use for Color DEEP PURPLISH BLUE SOLID E DPBSE / 0583 |
2S2-2163G-00-00 |
from US $10.63 |
||
|
20
|
20
5XC-2164B-00-00
Emblem, 3D
3D Use for Color LIGHT REDDISH YELLOW SOLID 1 LRYS1 / 0386 |
5XC-2164B-00-00 |
— | ||
