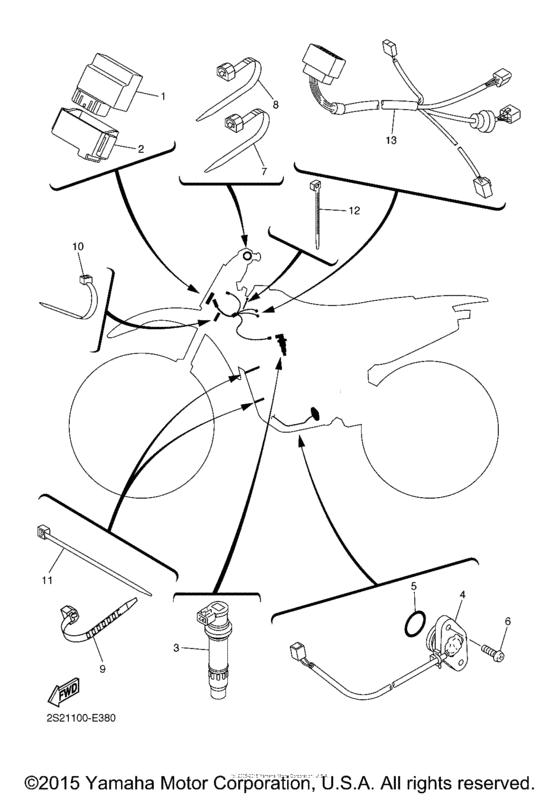

Electrical (1) Diagram Yamaha YZ450F YZ450F
- Year
- 2007
- Sales region
- USA
- Базовая модель
- YZ450FW
- Engine Capacity
- 450
- Model
- YZ450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2S2-85540-70-00 C.d.i. Unit Assy |
2S2-85540-70-00 |
from US $344.02 |
||
|
2
|
2
1C3-85546-00-00 Band |
1C3-85546-00-00 |
from US $8.88 |
||
|
3
|
3
5TA-82310-10-00 Ignition Coil Assy |
5TA-82310-10-00 |
from US $114.80 |
||
|
4
|
4
2S2-82540-00-00 Neutral Switch Assy |
2S2-82540-00-00 |
from US $36.61 |
||
|
5
|
5
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.94 |
||
| replacement | |||||
|
5
|
5
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.94 |
||
|
6
|
6
90154-05022-00 Screw, Bind |
90154-05022-00 |
from US $1.26 |
||
| replacement | |||||
|
6
|
6
98902-05014-00 Screw, Bind |
98902-05014-00 |
from US $1.56 |
||
|
7
|
7
904-64130-77-00 Clamp |
904-64130-77-00 |
from US $1.94 |
||
| replacement | |||||
|
7
|
7
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
8
|
8
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
8
|
8
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
9
|
9
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
10
|
10
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
11
|
11
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
11
|
11
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
12
|
12
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
12
|
12
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
13
|
13
2S2-82509-00-00 Wire, Sub Lead |
2S2-82509-00-00 |
from US $106.38 |
||
| replacement | |||||
|
13
|
13
2S2-82509-01-00
Wire, Sub Lead
|
2S2-82509-01-00 |
— | ||
