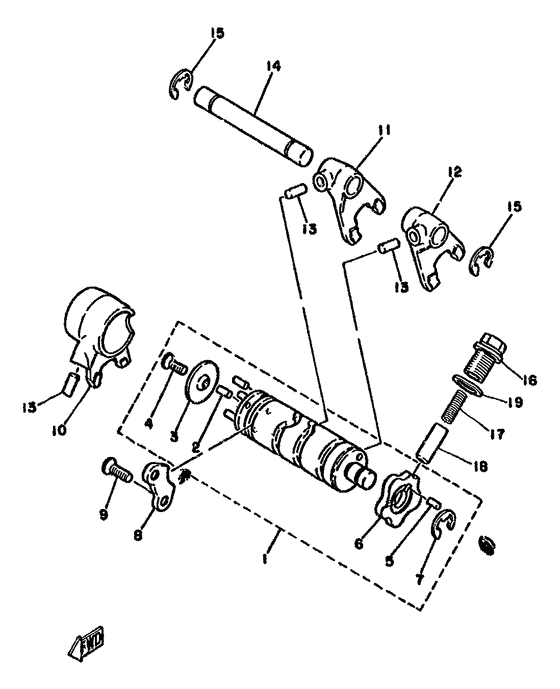

Shift Cam & Fork Diagram Yamaha YZ50
- Year
- 1980
- Model code
- 3R0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- YZ50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-18540-02-00
Shift Cam Assy
|
353-18540-02-00 |
— | ||
| replacement | |||||
|
1
|
1
4U5-18540-00-00
Shift Cam Assembly
|
4U5-18540-00-00 |
— | ||
|
2
|
2
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.70 |
||
|
3
|
3
214-18561-00-00
Plate, Side 1
|
214-18561-00-00 |
— | ||
|
4
|
4
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
4
|
4
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
5
|
5
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
6
|
6
353-18141-01-00
Plate, Stopper
|
353-18141-01-00 |
— | ||
|
7
|
7
93440-12026-00
Circlip, Outer
|
93440-12026-00 |
— | ||
|
8
|
8
353-18562-00-00
Plate, Stopper 2
|
353-18562-00-00 |
— | ||
|
9
|
9
92701-06012-00 Screw, Flat Head |
92701-06012-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
10
|
10
353-18511-01-00
Fork, Shift 1
|
353-18511-01-00 |
— | ||
|
11
|
11
353-18512-01-00
Fork, Shift 2
|
353-18512-01-00 |
— | ||
|
12
|
12
353-18513-01-00
Fork, Shift 3
|
353-18513-01-00 |
— | ||
|
13
|
13
93606-14081-00 Pin, Dowel |
93606-14081-00 |
from US $1.28 |
||
|
14
|
14
214-18531-00-00 Bar, Shift Fork Guide 1 |
214-18531-00-00 |
US $18.42 |
||
|
15
|
15
93430-10016-00 Circlip |
93430-10016-00 |
from US $1.35 |
||
| replacement | |||||
|
15
|
15
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
16
|
16
90109-14485-00 Bolt |
90109-14485-00 |
from US $8.86 |
||
|
17
|
17
90501-09292-00
Spring, Compression
|
90501-09292-00 |
— | ||
|
18
|
18
353-18547-00-00
Stopper, Cam
|
353-18547-00-00 |
— | ||
|
19
|
19
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
