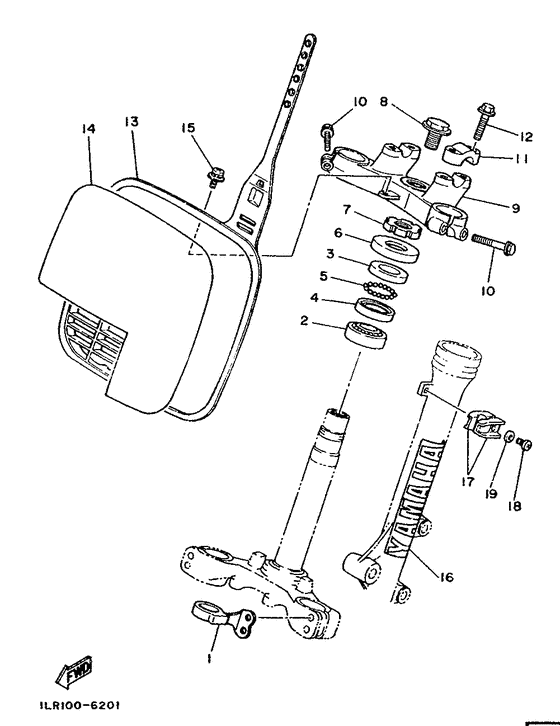

Steering Diagram Yamaha YZ80
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 2HF
- Sales region
- North America (999)
- Engine Capacity
- 80
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3R4-23389-00-00 Guide, Wire |
3R4-23389-00-00 |
from US $15.58 |
||
|
02
|
02
93332-00059-00 Bearing |
93332-00059-00 |
from US $43.24 |
||
| replacement | |||||
|
02
|
02
93332-00079-00 Bearing |
93332-00079-00 |
from US $42.67 |
||
|
03
|
03
1RR-23411-00-00
Race, Ball 1
|
1RR-23411-00-00 |
— | ||
|
04
|
04
1RR-23412-00-00
Race, Ball 2
|
1RR-23412-00-00 |
— | ||
|
05
|
05
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
05
|
05
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
06
|
06
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
07
|
07
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
07
|
07
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
07
|
07
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
08
|
08
90105-14137-00 Bolt, Flange |
90105-14137-00 |
from US $5.93 |
||
| replacement | |||||
|
08
|
08
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
09
|
09
22W-23435-00-98
Crown, Handle
Low gloss black |
22W-23435-00-98 |
— | ||
|
11
|
11
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
12
|
12
95811-08030-00 Bolt, Flange |
95811-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.18 |
||
|
13
|
13
22W-23485-11-00
Plate, Number
Clean white |
22W-23485-11-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
Clean white |
999-99999-99-00 |
— | ||
|
14
|
14
1LR-21785-00-00
Emblem 5
|
1LR-21785-00-00 |
— | ||
| replacement | |||||
|
14
|
14
2VE-21785-00-00
Emblem 5
|
2VE-21785-00-00 |
— | ||
|
15
|
15
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
| replacement | |||||
|
15
|
15
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
16
|
16
1LR-23108-00-00
Emblem
|
1LR-23108-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90465-14242-00 Clamp |
90465-14242-00 |
from US $4.39 |
||
|
18
|
18
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.52 |
||
| replacement | |||||
|
18
|
18
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
19
|
19
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
