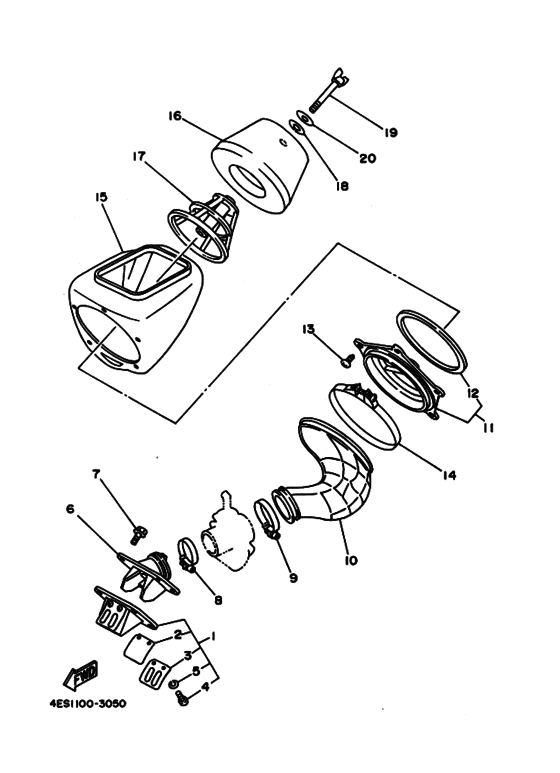

Intake Diagram Yamaha YZ80
- Year
- 1994
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4LB2
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- A
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4ES-13610-00-00 Reed Valve AssyＲＥＥＤ ＶＡＬＶＥ ＡＳＳＹ; |
4ES-13610-00-00 |
from US $114.87 |
||
|
2
|
2
4ES-13613-00-00 Reed, Valve．ＲＥＥＤ， ＶＡＬＶＥ; |
4ES-13613-00-00 |
from US $11.33 |
||
|
3
|
3
4ES-13616-00-00 Stopper, Reed Valve．ＳＴＯＰＰＥＲ， ＲＥＥＤ ＶＡＬＶＥ; |
4ES-13616-00-00 |
from US $4.39 |
||
|
4
|
4
98580-03008-00 Screw, Pan Head．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring．ＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
4ES-13565-00-00 Joint, CarburetorＪＯＩＮＴ， ＣＡＲＢＵＲＥＴＯＲ; |
4ES-13565-00-00 |
US $76.43 |
||
|
7
|
7
95023-06020-00 Bolt, Flg.(Small Head)ＢＯＬＴ; |
95023-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
95024-06020-00 Bolt, Flange (Small Head)ＢＯＬＴ; |
95024-06020-00 |
from US $1.66 |
||
|
8
|
8
90460-43053-00 Clamp, HoseＣＬＡＭＰ， ＨＯＳＥ; |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
8
|
8
90460-43179-00 Clamp, HoseＣＬＡＭＰ， ＨＯＳＥ; |
90460-43179-00 |
from US $7.65 |
||
|
9
|
9
90460-51059-00 Clamp, HoseＣＬＡＭＰ， ＨＯＳＥ; |
90460-51059-00 |
from US $7.65 |
||
|
10
|
10
4ES-14453-00-00
Joint, Air Cleaner 1
ＪＯＩＮＴ， ＡＩＲ ＣＬＥＡＮＥＲ １; |
4ES-14453-00-00 |
— | ||
|
11
|
11
4ES-14459-00-00 Holder, GuideＨＯＬＤＥＲ， ＧＵＩＤＥ; |
4ES-14459-00-00 |
US $51.59 |
||
|
12
|
12
4ES-14462-00-00 Seal．ＳＥＡＬ; |
4ES-14462-00-00 |
from US $5.81 |
||
|
13
|
13
90167-05031-00 Screw, Truss Head TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
90167-05031-00 |
from US $1.42 |
||
| replacements | |||||
|
13
|
13
90167-05077-00 Screw, Tapping(4Tv)ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
90167-05077-00 |
from US $2.08 |
||
|
13
|
13
977-07500-16-00
Screw, Tapping(4Mv)
ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
977-07500-16-00 |
— | ||
|
14
|
14
90450-99064-00 Hose Clamp AssyＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-99064-00 |
from US $29.19 |
||
|
15
|
15
4ES-14411-00-00
Case, Air Cleaner 1
ＣＡＳＥ， ＡＩＲ ＣＬＥＡＮＥＲ １; |
4ES-14411-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4ES-14411-01-00
Case, Air Cleaner 1
ＣＡＳＥ， ＡＩＲ ＣＬＥＡＮＥＲ １; |
4ES-14411-01-00 |
— | ||
|
16
|
16
4ES-14451-00-00 Element, Air CleanerＥＬＥＭＥＮＴ， ＡＩＲ ＣＬＥＡＮＥＲ; |
4ES-14451-00-00 |
from US $23.60 |
||
| replacement | |||||
|
16
|
16
4ES-14451-01-00 ＥＬＥＭＥＮＴ， ＡＩＲ ＣＬＥＡＮＥＲ; |
4ES-14451-01-00 |
US $27.58 |
||
|
17
|
17
4ES-14458-00-00
Guide
ＧＵＩＤＥ; |
4ES-14458-00-00 |
— | ||
|
18
|
18
90209-06096-00 WasherＷＡＳＨＥＲ; |
90209-06096-00 |
from US $1.84 |
||
|
19
|
19
90122-06034-00
Bolt, Wing
ＢＯＬＴ， ＷＩＮＧ; |
90122-06034-00 |
— | ||
| replacement | |||||
|
19
|
19
90122-06010-00 Bolt, WingＢＯＬＴ， ＷＩＮＧ; |
90122-06010-00 |
from US $5.81 |
||
|
20
|
20
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ; |
929-95061-00-00 |
from US $0.97 |
||
