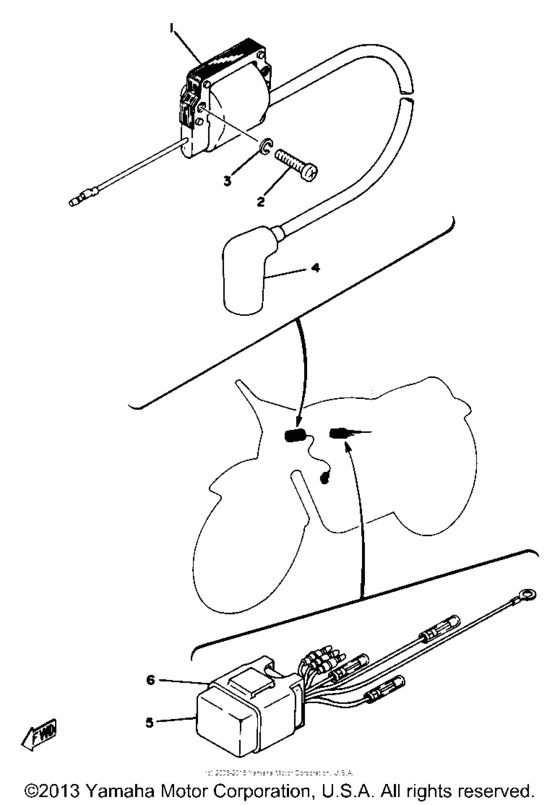

Electrical Diagram Yamaha YZ80
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 800
- Model
- YZ80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
510-82310-40-00 Ignition Coil Assembly |
510-82310-40-00 |
US $163.03 |
||
|
2
|
2
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
5
|
5
2J5-85540-20-00
Cdi Unit Assembly
|
2J5-85540-20-00 |
— | ||
|
6
|
6
2A7-85546-00-00 Band |
2A7-85546-00-00 |
from US $17.85 |
||
