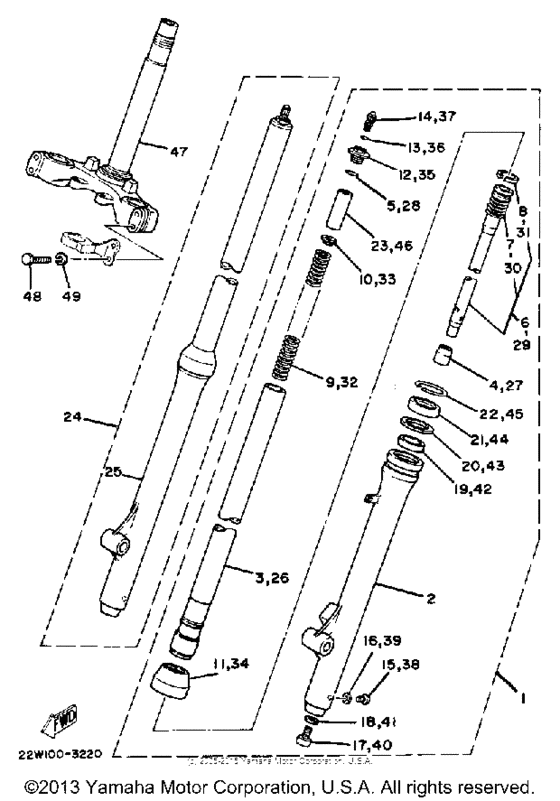

Front fork Diagram Yamaha YZ80
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 800
- Model
- YZ80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22W-23102-L0-00
Front Fork Assembly L
|
22W-23102-L0-00 |
— | ||
|
2
|
2
22W-23126-L0-00
Tube, Outer 1
|
22W-23126-L0-00 |
— | ||
|
3
|
3
58T-23110-L0-00
Inner Tube 1
|
58T-23110-L0-00 |
— | ||
|
4
|
4
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
5
|
5
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
6
|
6
22W-23170-L0-00
Cylinder, Frtfrk
|
22W-23170-L0-00 |
— | ||
|
7
|
7
509-23151-L0-00
Spring, Rebound
|
509-23151-L0-00 |
— | ||
|
8
|
8
22W-23157-L0-00
Ring, Piston Front Fork
|
22W-23157-L0-00 |
— | ||
|
9
|
9
22W-23141-L0-00
Spring, Front Fork
|
22W-23141-L0-00 |
— | ||
|
9
|
9
22W-23141-20-00
Spring, Frtfrk Hard
|
22W-23141-20-00 |
— | ||
|
10
|
10
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
11
|
11
22W-23144-L0-00
Seal, Dust
|
22W-23144-L0-00 |
— | ||
|
12
|
12
22W-23111-L0-00
Bolt, Cap
|
22W-23111-L0-00 |
— | ||
|
13
|
13
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
14
|
14
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
15
|
15
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
15
|
15
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
15
|
15
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
16
|
16
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
17
|
17
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
18
|
18
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
19
|
19
22W-23125-L0-00 Metal, Slide 1 |
22W-23125-L0-00 |
from US $9.92 |
||
| replacement | |||||
|
19
|
19
4HC-23125-20-00 Metal, Slide 1 |
4HC-23125-20-00 |
from US $10.96 |
||
|
20
|
20
22W-23146-L0-00 Washer, Oil Seal |
22W-23146-L0-00 |
from US $8.93 |
||
|
21
|
21
22W-23145-L0-00 Oil Seal |
22W-23145-L0-00 |
from US $16.73 |
||
|
22
|
22
22W-23153-L0-00 Ring, Snap |
22W-23153-L0-00 |
from US $4.62 |
||
|
23
|
23
11H-23118-00-00
Spacer
|
11H-23118-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
22W-23103-L0-00
Front Fork Assembly R
|
22W-23103-L0-00 |
— | ||
|
25
|
25
22W-23136-L0-00
Tube, Outer 2
|
22W-23136-L0-00 |
— | ||
|
26
|
26
58T-23110-L0-00
Inner Tube 1
|
58T-23110-L0-00 |
— | ||
|
27
|
27
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
28
|
28
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
29
|
29
22W-23170-L0-00
Cylinder, Frtfrk
|
22W-23170-L0-00 |
— | ||
|
30
|
30
509-23151-L0-00
Spring, Rebound
|
509-23151-L0-00 |
— | ||
|
31
|
31
22W-23157-L0-00
Ring, Piston Front Fork
|
22W-23157-L0-00 |
— | ||
|
32
|
32
22W-23141-L0-00
Spring, Front Fork
|
22W-23141-L0-00 |
— | ||
|
32
|
32
22W-23141-20-00
Spring, Frtfrk Hard
|
22W-23141-20-00 |
— | ||
|
33
|
33
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
34
|
34
22W-23144-L0-00
Seal, Dust
|
22W-23144-L0-00 |
— | ||
|
35
|
35
22W-23111-L0-00
Bolt, Cap
|
22W-23111-L0-00 |
— | ||
|
36
|
36
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
37
|
37
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
38
|
38
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
38
|
38
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
38
|
38
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
39
|
39
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
40
|
40
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
41
|
41
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
42
|
42
22W-23125-L0-00 Metal, Slide 1 |
22W-23125-L0-00 |
from US $9.92 |
||
| replacement | |||||
|
42
|
42
4HC-23125-20-00 Metal, Slide 1 |
4HC-23125-20-00 |
from US $10.96 |
||
|
43
|
43
22W-23146-L0-00 Washer, Oil Seal |
22W-23146-L0-00 |
from US $8.93 |
||
|
44
|
44
22W-23145-L0-00 Oil Seal |
22W-23145-L0-00 |
from US $16.73 |
||
|
45
|
45
22W-23153-L0-00 Ring, Snap |
22W-23153-L0-00 |
from US $4.62 |
||
|
46
|
46
11H-23118-00-00
Spacer
|
11H-23118-00-00 |
— | ||
| replacement | |||||
|
46
|
46
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
47
|
47
22W-23340-L0-33
Under Bracket
|
22W-23340-L0-33 |
— | ||
|
48
|
48
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
48
|
48
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
49
|
49
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
