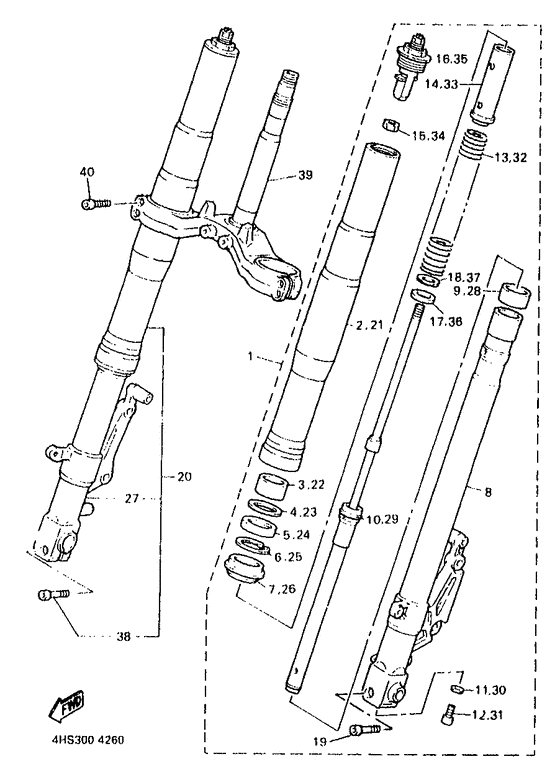

Front fork Diagram Yamaha YZF750 YZF750
- Year
- 1994
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 4HT2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 750
- Model
- YZF750SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4FM-23102-30-00
Front Fork Assy (L.h)
|
4FM-23102-30-00 |
— | ||
|
02
|
02
4FM-23136-20-00
Tube, Outer (Right)
|
4FM-23136-20-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
3GM-23125-00-00
Metal, Slide 1
|
3GM-23125-00-00 |
— | ||
| replacement | |||||
|
03
|
03
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $17.86 |
||
|
04
|
04
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
05
|
05
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
06
|
06
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
07
|
07
3XV-23144-50-00 Seal, Dust |
3XV-23144-50-00 |
from US $28.28 |
||
|
08
|
08
4FM-23110-20-00
Inner Tube Comp.1
|
4FM-23110-20-00 |
— | ||
|
09
|
09
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
09
|
09
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
10
|
10
4FM-23170-10-00
Cylinder Comp., Front Fork
|
4FM-23170-10-00 |
— | ||
|
11
|
11
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
12
|
12
3LC-23181-00-00 Bolt, Hexagon Socket Head |
3LC-23181-00-00 |
from US $11.76 |
||
|
13
|
13
4FM-23141-10-00 Spring, Front Fork |
4FM-23141-10-00 |
US $99.38 |
||
|
14
|
14
4FM-23118-00-00
Spacer
|
4FM-23118-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
16
|
16
4FM-23111-10-00
Bolt, Cap
|
4FM-23111-10-00 |
— | ||
|
17
|
17
4FM-23159-00-00
Washer, Spring, Lower
|
4FM-23159-00-00 |
— | ||
|
18
|
18
4FM-23165-00-00
Washer, Felt
|
4FM-23165-00-00 |
— | ||
|
19
|
19
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
19
|
19
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
20
|
20
4FM-23103-30-00
Front Fork Assy (R.h)
|
4FM-23103-30-00 |
— | ||
|
21
|
21
4FM-23136-20-00
Tube, Outer (Right)
|
4FM-23136-20-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
3GM-23125-50-00 Metal, Slide 1 |
3GM-23125-50-00 |
from US $27.77 |
||
|
23
|
23
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
24
|
24
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
25
|
25
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
26
|
26
3XV-23144-50-00 Seal, Dust |
3XV-23144-50-00 |
from US $28.28 |
||
|
27
|
27
4FM-23120-20-00 Inner Tube Comp.2 |
4FM-23120-20-00 |
US $864.88 |
||
|
28
|
28
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
28
|
28
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
29
|
29
4FM-23170-10-00
Cylinder Comp., Front Fork
|
4FM-23170-10-00 |
— | ||
|
30
|
30
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
31
|
31
3LC-23181-00-00 Bolt, Hexagon Socket Head |
3LC-23181-00-00 |
from US $11.76 |
||
|
32
|
32
4FM-23141-10-00 Spring, Front Fork |
4FM-23141-10-00 |
US $99.38 |
||
|
33
|
33
4FM-23118-00-00
Spacer
|
4FM-23118-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
35
|
35
4FM-23111-10-00
Bolt, Cap
|
4FM-23111-10-00 |
— | ||
|
36
|
36
4FM-23159-00-00
Washer, Spring, Lower
|
4FM-23159-00-00 |
— | ||
|
37
|
37
4FM-23165-00-00
Washer, Felt
|
4FM-23165-00-00 |
— | ||
|
38
|
38
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
38
|
38
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
39
|
39
4FM-23340-00-00 Under Bracket Comp |
4FM-23340-00-00 |
US $666.09 |
||
| replacement | |||||
|
39
|
39
4FM-23340-60-00 Under Bracket Comp |
4FM-23340-60-00 |
US $666.09 |
||
|
40
|
40
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
40
|
40
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
