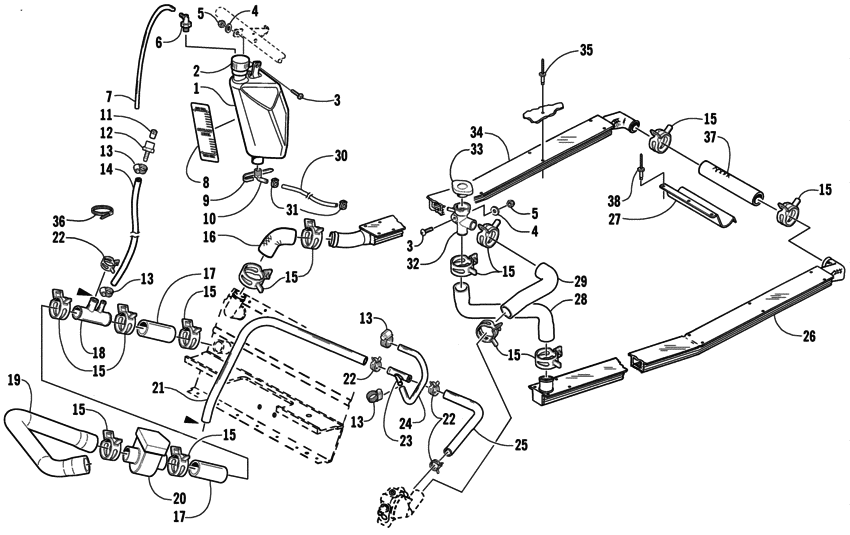

Cooling assembly Diagram Arctic Cat 4-STROKE 4-Stroke Trail
- Model code
- S2003ACFLCUSG
- Engine Capacity
- 660
- Year
- 2003
- Commercial Name
- 4-Stroke Trail
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- 4-Stroke Trail
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1670-246
Tank
|
1670-246 |
— | ||
|
2
|
2
0670-035 CapTank water |
0670-035 |
US $15.28 |
||
|
3
|
3
8017-580 ScrewCap |
8017-580 |
US $28.80 |
||
|
4
|
4
8050-217 Washer |
8050-217 |
US $3 |
||
|
5
|
5
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
6
|
6
0670-242 Vent90 |
0670-242 |
US $16.10 |
||
|
7
|
7
0610-010 HoseVent-25' |
0610-010 |
US $70.91 |
||
|
8
|
8
4611-093 DecalCoolant tank; fill level |
4611-093 |
US $25.23 |
||
|
9
|
9
0670-289 TapeRoll; teflon |
0670-289 |
US $6.46 |
||
|
10
|
10
0670-075 FittingElbow |
0670-075 |
US $4.20 |
||
|
11
|
11
0623-976 PlugAdapter |
0623-976 |
US $2.79 |
||
|
12
|
12
1670-303 AdapterFitting |
1670-303 |
US $2.94 |
||
|
13
|
13
0623-373 ClampHose |
0623-373 |
US $7.68 |
||
|
14
|
14
0610-075 Hose10' roll; gas |
0610-075 |
US $138.92 |
||
|
15
|
15
0623-736 ClampHose |
0623-736 |
US $7.88 |
||
|
16
|
16
0610-244 HoseFront exchanger/left; coolant |
0610-244 |
US $24.24 |
||
|
17
|
17
0610-539 HoseT-fitting; coolant |
0610-539 |
US $28.18 |
||
|
18
|
18
2606-502 T-fittingDouble |
2606-502 |
US $11.43 |
||
|
19
|
19
0610-453 HoseHeater/engine; coolant |
0610-453 |
US $73.15 |
||
|
20
|
20
0609-182 HeaterInline |
0609-182 |
US $62.58 |
||
|
21
|
21
0610-520 HoseY-fitting/t-fitting; coolant |
0610-520 |
US $34.84 |
||
|
22
|
22
1623-146 ClampHose |
1623-146 |
US $2.74 |
||
|
23
|
23
2606-625
Y-fitting
|
2606-625 |
— | ||
|
24
|
24
0610-518 HoseThrottle body/y-fitting; coolant |
0610-518 |
US $25.99 |
||
|
25
|
25
0610-519 HoseThermostat/y-fitting; coolant |
0610-519 |
US $47.08 |
||
|
26
|
26
2706-079 Heat exchangerLeft tube |
2706-079 |
US $204.37 |
||
|
27
|
27
0616-810 GuardCoolant hose |
0616-810 |
US $18.54 |
||
|
28
|
28
0610-488 HoseFiller neck/rear heat exchanger |
0610-488 |
US $43.57 |
||
|
29
|
29
0610-500 HoseFiller neck/engine; coolant |
0610-500 |
US $52.30 |
||
|
30
|
30
0610-015 Hose100 ft |
0610-015 |
US $326.26 |
||
|
30
|
30
0610-016 Hose25 ft |
0610-016 |
US $123.18 |
||
|
31
|
31
0124-045 ClampHose |
0124-045 |
US $37.30 |
||
|
32
|
32
2606-859 NeckFiller |
2606-859 |
US $34.67 |
||
|
33
|
33
2606-284 CapFiller neck |
2606-284 |
US $29.32 |
||
|
34
|
34
0716-920 Heat exchangerRight tube |
0716-920 |
US $174.90 |
||
|
35
|
35
8060-706 Rivet |
8060-706 |
US $5.80 |
||
|
36
|
36
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
37
|
37
0610-215
Hose
|
0610-215 |
— | ||
|
38
|
38
8060-504 Rivet |
8060-504 |
US $8.60 |
