Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 0620-265 Speedometer inc. 2-3, three No. 4, and one No. 5 ;	0620-265	US $276.63
2	2 0620-073 Knob Tripmeter	0620-073	US $15.39
3	3 0620-266 Harness Speedometer; bulb inc. three No. 4 and one No. 5 ;	0620-266	US $128.32
4	4 0620-149 Bulb Speedometer	0620-149	US $5.87
5	5 0230-020 Bulb	0230-020	US $5.92
6	6 0620-259 Tachometer inc. two No. 4, one No. 5, and 7 ;	0620-259	US $593.24
7	7 0620-262 Harness Tachometer inc. two No. 4 and one No. 5 ;	0620-262	US $128.32
8	8 0620-135 Ring Rubber cushion	0620-135	US $3.64
9	9 0620-134 Backclamp Speedometer/tachometer	0620-134	US $16.06
10	10 0623-038 Nut w/washer	0623-038	US $2.15
11	11 0620-269 Cable Speedometer	0620-269	US $63.21
12	12 0123-788 Tie Cable	0123-788	US $2.90
13	13 0686-868 Harness Hood	0686-868	US $165.72
14	14 0686-802 Harness Main	0686-802	US $290.39
15	15 0623-757 Nut Speed	0623-757	US $13.50
16	16 0609-250 Lens/reflector Headlight	0609-250	US $168.68
17	17 0609-251 Bulb High beam; headlight	0609-251	US $34.98
18	18 0609-252 Bulb Low beam; headlight	0609-252	US $28.47
19	19 0623-466 Spring Headlight; adjuster	0623-466	US $11.80
20	20 0623-467 Screw Thumb	0623-467	US $0.48
21	21 0623-847 Clip Hairpin	0623-847	US $6.65
22	22 3611-581 Decal "esr" Included in Hood w/Decals;	3611-581	US $19.89
23	23 4611-791 Decal Hood; instrument Included in Hood w/Decals;	4611-791	US $37.33
24	24 3611-611 Decal Included in Hood w/Decals;	3611-611	—

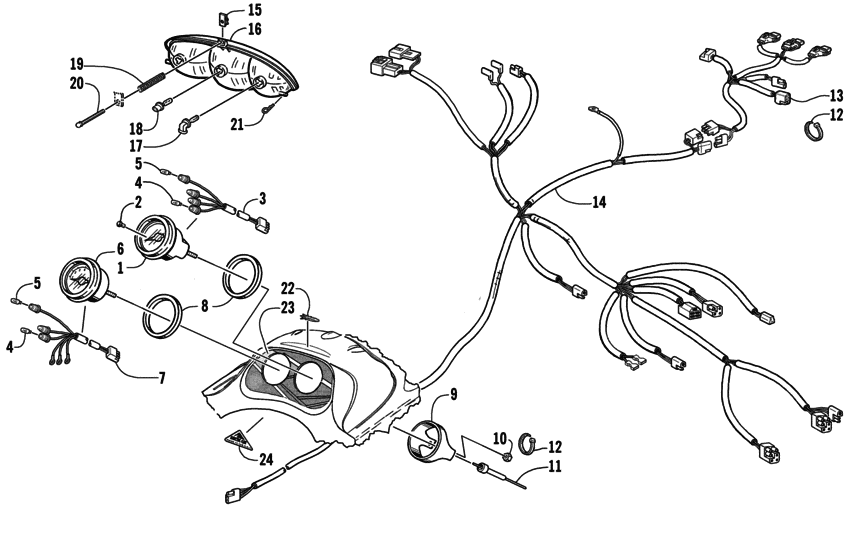

Headlight, Instruments, And Wiring Assemblies Diagram Arctic Cat 4-STROKE 4-Stroke Trail General 10989723-697726
