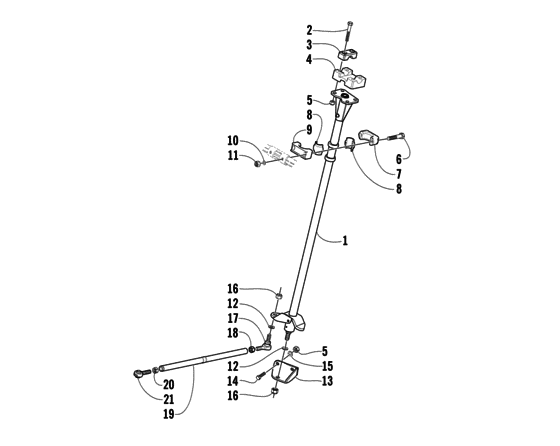

Steering Post Assembly Diagram Arctic Cat 4-STROKE 4-Stroke Trail
- Model code
- S2003ACFLCUSG
- Engine Capacity
- 660
- Year
- 2003
- Commercial Name
- 4-Stroke Trail
- Sales region
- General
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- 4-Stroke Trail
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0705-852 PostSteering |
0705-852 |
US $313.87 |
||
| replacement | |||||
|
1
|
1
1705-372 Post,steering-ptd blk |
1705-372 |
US $313.87 |
||
|
2
|
2
8002-137 ScrewCap |
8002-137 |
US $7.50 |
||
|
3
|
3
0605-506 CapAdjusting block |
0605-506 |
US $13.99 |
||
|
4
|
4
0605-507 BlockAdjusting |
0605-507 |
US $61.36 |
||
|
5
|
5
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
6
|
6
0623-814 ScrewCap |
0623-814 |
US $2.18 |
||
|
7
|
7
0605-406 CapBearing |
0605-406 |
US $33.69 |
||
|
8
|
8
0405-020 BearingSteering post |
0405-020 |
US $6.30 |
||
|
9
|
9
0605-147
Housing
|
0605-147 |
— | ||
| replacement | |||||
|
9
|
9
0705-064
Housing
|
0705-064 |
— | ||
|
10
|
10
8050-217 Washer |
8050-217 |
US $3 |
||
|
11
|
11
8040-366 NutLock |
8040-366 |
US $8.60 |
||
|
12
|
12
0623-044 WasherHardened; flat |
0623-044 |
US $16.55 |
||
|
13
|
13
0705-427
Plate
|
0705-427 |
— | ||
|
14
|
14
8002-132 ScrewCap |
8002-132 |
US $4.80 |
||
|
15
|
15
8050-247 Washer |
8050-247 |
US $9 |
||
|
16
|
16
0623-025 NutLock |
0623-025 |
US $21.10 |
||
|
17
|
17
0605-423 Ball jointLeft; steering |
0605-423 |
US $83.82 |
||
|
18
|
18
0123-917 NutLeft-hand threat; hex |
0123-917 |
US $18.10 |
||
|
19
|
19
0605-404 TubeTie rod |
0605-404 |
US $23.50 |
||
|
20
|
20
0623-294 Nut |
0623-294 |
US $2.95 |
||
|
21
|
21
0605-504 Ball jointRight; tie rod |
0605-504 |
US $39.65 |
||
| replacement | |||||
|
21
|
21
1605-010 Ball jointRight-hand thread; tie rod |
1605-010 |
US $39.65 |
||
