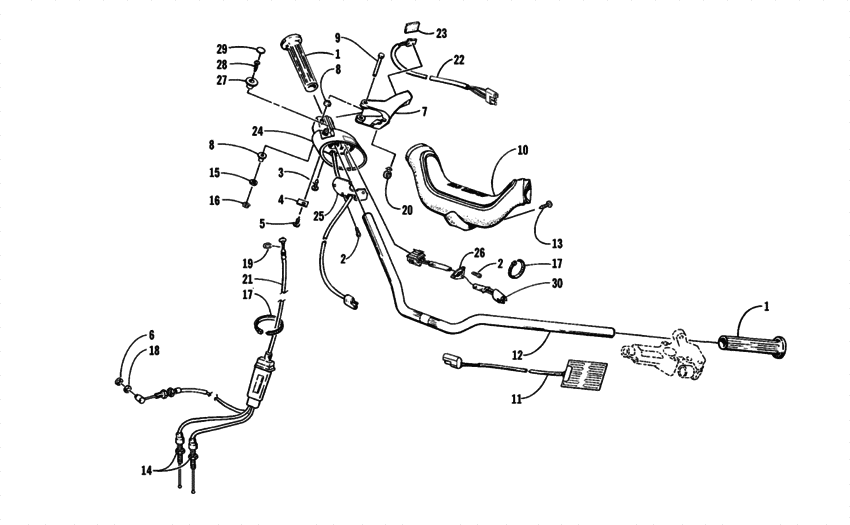

Handlebar and controls Diagram Arctic Cat BEARCAT Bearcat 550 Wide Track
- Model code
- S2000BCCWTUS-2000
- Engine Capacity
- 550
- Year
- 2000
- Commercial Name
- Bearcat 550 Wide Track
- Sales region
- General
- Power
- 80 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 550 Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0117-793 Grip |
0117-793 |
US $31.73 |
||
| replacement | |||||
|
1
|
1
2606-084 GripHandlebar |
2606-084 |
US $30.56 |
||
|
2
|
2
0609-312 ScrewMachine |
0609-312 |
US $1.35 |
||
|
3
|
3
0609-085 Screw |
0609-085 |
US $7.60 |
||
|
4
|
4
0609-319 ClampSingle; harness |
0609-319 |
US $7.42 |
||
|
5
|
5
0609-321 ScrewSelf-tapping |
0609-321 |
US $2.13 |
||
|
6
|
6
0124-057 E-ring |
0124-057 |
US $4.52 |
||
|
7
|
7
0609-324 LeverThrottle |
0609-324 |
US $29.32 |
||
|
8
|
8
0609-038
Seal
|
0609-038 |
— | ||
|
9
|
9
0609-317
Axle
|
0609-317 |
— | ||
|
10
|
10
0616-995 PadHandlebar |
0616-995 |
US $74.39 |
||
|
11
|
11
0609-374 ElementHandlebar heater |
0609-374 |
US $50.82 |
||
| replacement | |||||
|
11
|
11
0609-552 Element-374; hw-on/off w/o cap |
0609-552 |
US $50.82 |
||
|
12
|
12
0605-308 Handlebar |
0605-308 |
US $69.75 |
||
|
13
|
13
0623-128 Screw |
0623-128 |
US $4.80 |
||
|
14
|
14
0609-464 Nut |
0609-464 |
US $15.28 |
||
|
15
|
15
0609-036
Washer
|
0609-036 |
— | ||
|
16
|
16
0609-040 RingRetaining |
0609-040 |
US $4.38 |
||
|
17
|
17
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
18
|
18
0124-056 Washer |
0124-056 |
US $63.55 |
||
|
19
|
19
0123-231 RingRetaining |
0123-231 |
US $9.50 |
||
|
20
|
20
0623-262 ClipWire |
0623-262 |
US $4.90 |
||
|
21
|
21
0687-037 CableThrottle |
0687-037 |
US $157.51 |
||
|
22
|
22
0609-372 ElementThumbwarmer |
0609-372 |
US $58.26 |
||
|
23
|
23
0617-248 PadInsulator |
0617-248 |
US $7.83 |
||
|
24
|
24
0609-391 ControlInc. five no. 6, one no. 7, and 40-45; throttle |
0609-391 |
US $211.10 |
||
|
25
|
25
0609-316 CoverThrottle switch |
0609-316 |
US $11.10 |
||
|
26
|
26
0609-378 PlateCover |
0609-378 |
US $9.92 |
||
|
27
|
27
0609-282 KnobEmergency stop |
0609-282 |
US $23.46 |
||
|
28
|
28
0623-215 Screw |
0623-215 |
US $12.88 |
||
| replacement | |||||
|
28
|
28
0609-612 ScrewRetaining plate |
0609-612 |
US $12.88 |
||
|
29
|
29
0609-283 DecalMark plate |
0609-283 |
US $13.47 |
||
|
30
|
30
0609-384 Switch assemblyThumbwarmer |
0609-384 |
US $75 |
||
