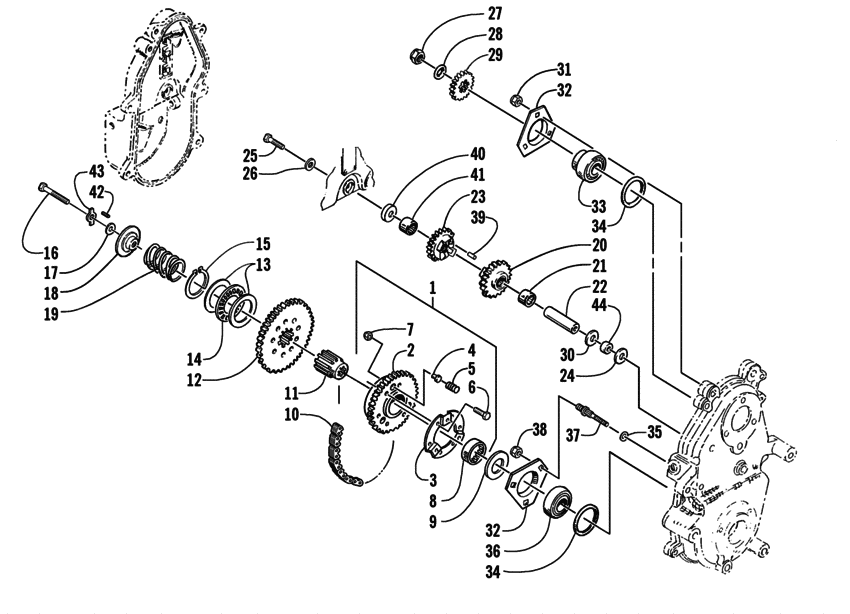

Drive/reverse dropcase assembly Diagram Arctic Cat BEARCAT Bearcat 550 Wide Track
- Model code
- S2002BCCWTUSL
- Engine Capacity
- 550
- Year
- 2002
- Commercial Name
- Bearcat 550 Wide Track
- Sales region
- General
- Colour
- Blue
- Power
- 80 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Bearcat 550 Wide Track
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0702-394 Sprocket assembly40t 15 Wide inc. 2-8 ; |
0702-394 |
US $421.33 |
||
|
1
|
1
0702-383
Sprocket assembly
15 Wide inc. 2-8 International ; |
0702-383 |
— | ||
|
3
|
3
0602-144 RetainerSpring |
0602-144 |
US $23.33 |
||
|
4
|
4
0602-133 PinSlip |
0602-133 |
US $31.15 |
||
|
5
|
5
0602-138 SpringCompression |
0602-138 |
from US $5.50 |
||
|
6
|
6
0623-182 ScrewCap |
0623-182 |
US $2.58 |
||
|
7
|
7
0123-430 NutLock |
0123-430 |
US $18.15 |
||
|
8
|
8
0602-016 Bearing |
0602-016 |
US $40.88 |
||
|
9
|
9
0602-012 SpacerShaft |
0602-012 |
US $32.41 |
||
|
10
|
10
0602-968 Chain15 wide; 70p 15 Wide ; |
0602-968 |
US $218.59 |
||
|
10
|
10
0602-972 Chain72p 15 Wide International ; |
0602-972 |
US $253.17 |
||
|
11
|
11
1602-048 ExtensionDriveshaft |
1602-048 |
US $205.21 |
||
|
12
|
12
0702-048
Gear
inc. 13-15 ; |
0702-048 |
— | ||
|
13
|
13
0602-023 WasherThrust |
0602-023 |
US $25.17 |
||
|
14
|
14
0602-022 BearingThrust |
0602-022 |
US $37.89 |
||
|
15
|
15
0602-024 RingRetaining |
0602-024 |
US $1.49 |
||
|
16
|
16
8002-231
Screw
|
8002-231 |
— | ||
|
17
|
17
8050-272 Washer |
8050-272 |
US $2.15 |
||
|
18
|
18
0702-372 RetainerShaft inc. 43 ; |
0702-372 |
US $34.67 |
||
|
19
|
19
0602-028 SpringReturn |
0602-028 |
US $38.96 |
||
|
20
|
20
0702-260 IdlerInc. 17; 24t; reverse assembly inc. 21 ; |
0702-260 |
US $134.58 |
||
|
20
|
20
0702-147 SprocketInc. one 33; 20t inc. 21 International ; |
0702-147 |
US $231.98 |
||
|
21
|
21
0602-018 Bearing |
0602-018 |
US $33.11 |
||
|
22
|
22
0602-094 ShaftReverse |
0602-094 |
US $59.45 |
||
|
23
|
23
0702-366 IdlerInc. 40; 19t; reverse assembly inc. 42 ; |
0702-366 |
US $198.08 |
||
|
24
|
24
0602-215 Washer |
0602-215 |
US $3.55 |
||
|
25
|
25
8012-130 ScrewLock; cap |
8012-130 |
US $13.70 |
||
|
26
|
26
8050-242 Washer |
8050-242 |
US $28.20 |
||
|
27
|
27
0623-465 NutLock |
0623-465 |
US $18.92 |
||
|
28
|
28
0623-231
Washer
|
0623-231 |
— | ||
|
29
|
29
0602-995
Sprocket
15 Wide ; |
0602-995 |
— | ||
|
30
|
30
0602-215 WasherInternational ; |
0602-215 |
US $3.55 |
||
|
31
|
31
8041-426 NutLock |
8041-426 |
from US $1.60 |
||
|
32
|
32
0602-198 PlateFlange |
0602-198 |
US $21.39 |
||
|
33
|
33
1602-052
Bearing
|
1602-052 |
— | ||
| replacement | |||||
|
33
|
33
1702-180 KitReplacement bearing-7/8" |
1702-180 |
US $69.65 |
||
|
34
|
34
0107-003 Seal"o" ring |
0107-003 |
US $3.62 |
||
|
35
|
35
0607-025 O-ringStud |
0607-025 |
US $9.75 |
||
|
36
|
36
1602-051
Bearing
|
1602-051 |
— | ||
| replacement | |||||
|
36
|
36
1702-179 KitReplacement bearing-1" |
1702-179 |
from US $84.80 |
||
|
37
|
37
0623-317 Stud |
0623-317 |
US $116.10 |
||
|
38
|
38
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
39
|
39
0602-366 AlignerIdler |
0602-366 |
US $5.84 |
||
|
40
|
40
1602-044 WasherThrust |
1602-044 |
US $12.71 |
||
|
41
|
41
1602-045 Bearing |
1602-045 |
US $33.11 |
||
|
42
|
42
8070-153 PinSpring |
8070-153 |
US $0.44 |
||
|
43
|
43
1602-046
Washer
|
1602-046 |
— | ||
|
44
|
44
0602-093 SpacerReverse shaft International ; |
0602-093 |
US $8.95 |
||
