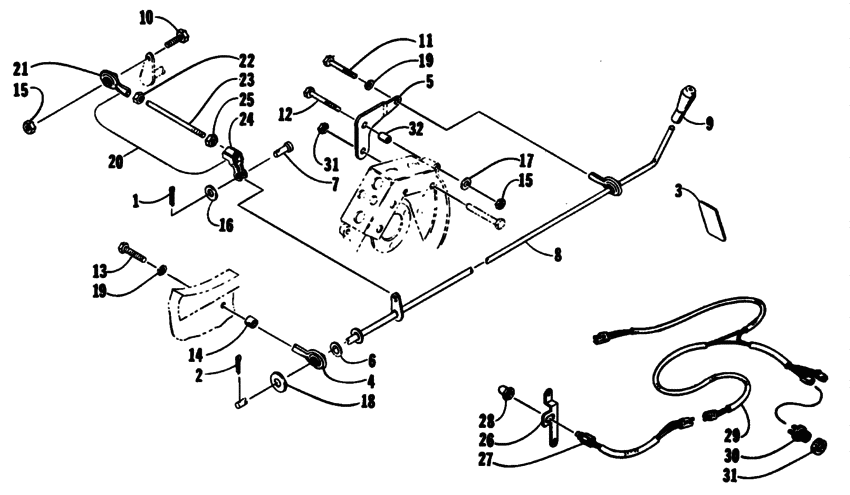

Reverse shift lever assembly Diagram Arctic Cat COUGAR Cougar
- Model code
- 0650-182-1992
- Year
- 1992
- Commercial Name
- Cougar
- Sales region
- General
- Model
- Cougar
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
0636-987
Reverse/shift lever kit
|
0636-987 |
— | ||
|
1
|
1
0117-868 PinCotter |
0117-868 |
US $1.29 |
||
|
2
|
2
0123-458 PinCotter |
0123-458 |
US $5.80 |
||
|
3
|
3
0611-534 Decal"caution" reverse |
0611-534 |
US $18.63 |
||
| replacement | |||||
|
3
|
3
1611-444 DecalReverse; caution |
1611-444 |
US $18.63 |
||
|
4
|
4
0602-163 Rod endFemale |
0602-163 |
US $23.05 |
||
|
5
|
5
0602-471
Bracket
|
0602-471 |
— | ||
|
6
|
6
0623-130 WasherSpring |
0623-130 |
US $7.60 |
||
|
7
|
7
0623-132 PinClevis |
0623-132 |
US $2.52 |
||
|
8
|
8
0702-137 LeverShift |
0702-137 |
US $41.05 |
||
|
9
|
9
0602-152 KnobShift lever |
0602-152 |
US $14.04 |
||
|
10
|
10
8002-130 ScrewCap |
8002-130 |
US $6.80 |
||
|
11
|
11
8004-222 ScrewCap |
8004-222 |
US $2.50 |
||
|
12
|
12
8002-139
Screw
|
8002-139 |
— | ||
|
13
|
13
8004-224 ScrewCap |
8004-224 |
US $0.50 |
||
|
14
|
14
0114-312 Spacer |
0114-312 |
US $76.85 |
||
|
15
|
15
8040-426 NutLock |
8040-426 |
US $44.40 |
||
|
16
|
16
8050-217 Washer |
8050-217 |
US $3 |
||
|
17
|
17
8050-247 Washer |
8050-247 |
US $9 |
||
|
18
|
18
8050-277 Washer |
8050-277 |
US $10.75 |
||
|
19
|
19
8051-277 WasherLock |
8051-277 |
US $65.40 |
||
|
20
|
20
0702-186 Link ass'yInc. 21-25; shifting |
0702-186 |
US $112.09 |
||
|
21
|
21
0602-305 Rod end |
0602-305 |
US $21.03 |
||
|
22
|
22
0623-260 NutL.h. thds.; jam |
0623-260 |
US $5.45 |
||
|
23
|
23
0602-320 Rod |
0602-320 |
US $4 |
||
|
24
|
24
0702-105 Yoke |
0702-105 |
US $68.52 |
||
|
25
|
25
0123-144 NutJam |
0123-144 |
US $0.22 |
||
|
26
|
26
0602-474 BracketSwitch mounting |
0602-474 |
US $4.22 |
||
|
27
|
27
0630-011 Switch |
0630-011 |
US $65.60 |
||
|
28
|
28
0630-013 Boot |
0630-013 |
US $21.03 |
||
|
29
|
29
0686-121 HarnessReverse alarm |
0686-121 |
US $47.30 |
||
|
30
|
30
0630-010 AlarmReverse |
0630-010 |
US $84.69 |
||
|
31
|
31
0623-122
Nut
|
0623-122 |
— | ||
|
32
|
32
0602-473 Spacer |
0602-473 |
US $16.63 |
||
