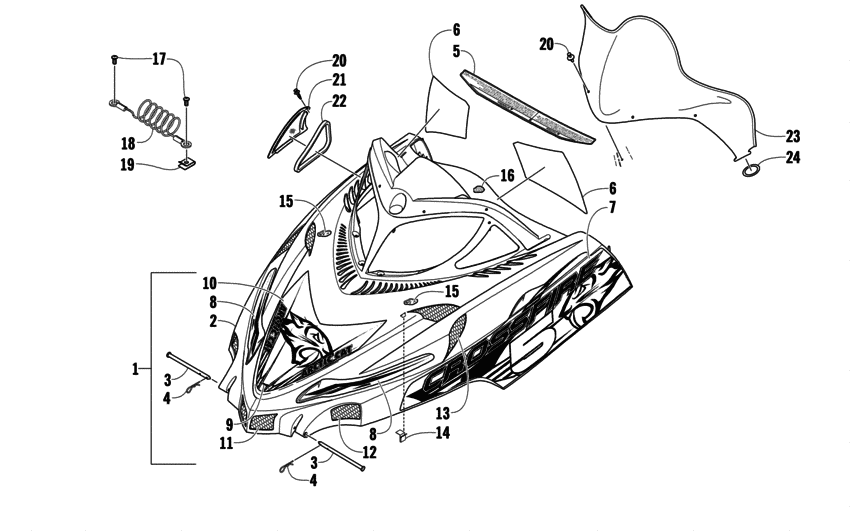

Hood And Windshield Assembly Diagram Arctic Cat CROSSFIRE Crossfire 5 EFI
- Model code
- S2009CFC1EUSB
- Engine Capacity
- 499
- Year
- 2009
- Commercial Name
- Crossfire 5 EFI
- Sales region
- General
- Colour
- Black
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- CF5 (Crossfire 5 EFI)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2718-501 Hood w/decalsinc. 2-10 ; |
2718-501 |
US $1,199.67 |
||
|
2
|
2
2718-146
Hood w/o decals
inc. 3-6 ; |
2718-146 |
— | ||
|
3
|
3
1623-026 PinClevis |
1623-026 |
US $30.62 |
||
|
4
|
4
0623-847 ClipHairpin |
0623-847 |
US $6.65 |
||
|
5
|
5
6611-143 DecalCaution |
6611-143 |
US $15.39 |
||
|
6
|
6
6611-144 DecalEnglish; warning |
6611-144 |
US $28.06 |
||
|
6
|
6
6611-145 DecalFrench; warning |
6611-145 |
US $15.39 |
||
|
7
|
7
8611-350 DecalLower right; hood |
8611-350 |
US $181.08 |
||
|
7
|
7
8611-351 DecalLower left; hood |
8611-351 |
US $142.64 |
||
|
8
|
8
8611-352 DecalForward right; hood |
8611-352 |
US $35.43 |
||
|
8
|
8
8611-353 DecalForward left; hood |
8611-353 |
US $35.43 |
||
|
9
|
9
8611-267 DecalChrome; aircat |
8611-267 |
US $19.23 |
||
|
10
|
10
8611-354 DecalCrest; hood |
8611-354 |
US $178.60 |
||
|
11
|
11
2706-793 ScreenCenter; vent |
2706-793 |
US $33.69 |
||
|
12
|
12
3706-260 ScreenFront - right; vent |
3706-260 |
US $59.98 |
||
|
12
|
12
3706-261 ScreenFront - left; vent |
3706-261 |
US $59.98 |
||
|
13
|
13
2706-797 ScreenRear - left; vent |
2706-797 |
US $33.69 |
||
|
13
|
13
2706-796 ScreenRear - right; vent |
2706-796 |
US $46.86 |
||
|
14
|
14
1623-694 ClipRetaining |
1623-694 |
US $4.30 |
||
|
15
|
15
0617-510 FoamRight; hood |
0617-510 |
US $110.50 |
||
|
15
|
15
0617-545 FoamLeft; hood |
0617-545 |
US $113.24 |
||
|
16
|
16
0617-489 FoamRear; hood |
0617-489 |
US $19.65 |
||
|
17
|
17
0623-302 ScrewSelf-tapping |
0623-302 |
US $1.72 |
||
|
18
|
18
2606-726 CableHood |
2606-726 |
US $19.09 |
||
|
19
|
19
1623-052 U-nut |
1623-052 |
US $2.68 |
||
|
20
|
20
0623-362 RivetPlastic |
0623-362 |
US $4.40 |
||
|
21
|
21
5606-080 BezelRight; intake |
5606-080 |
US $39.53 |
||
| replacement | |||||
|
21
|
21
4706-180 BezelIntake-s/p assy-rh |
4706-180 |
US $38.39 |
||
|
21
|
21
5606-081 BezelLeft; intake |
5606-081 |
US $39.53 |
||
| replacement | |||||
|
21
|
21
4706-181 BezelIntake-s/p assy-lh |
4706-181 |
US $38.39 |
||
|
22
|
22
0617-486 FoamRight; intake bezel |
0617-486 |
US $13.99 |
||
|
22
|
22
0617-487 FoamLeft; intake bezel |
0617-487 |
US $13.99 |
||
|
23
|
23
4606-117 Windshield |
4606-117 |
US $217.87 |
||
|
24
|
24
0616-032 O-ringWindshield |
0616-032 |
US $14.76 |
||
