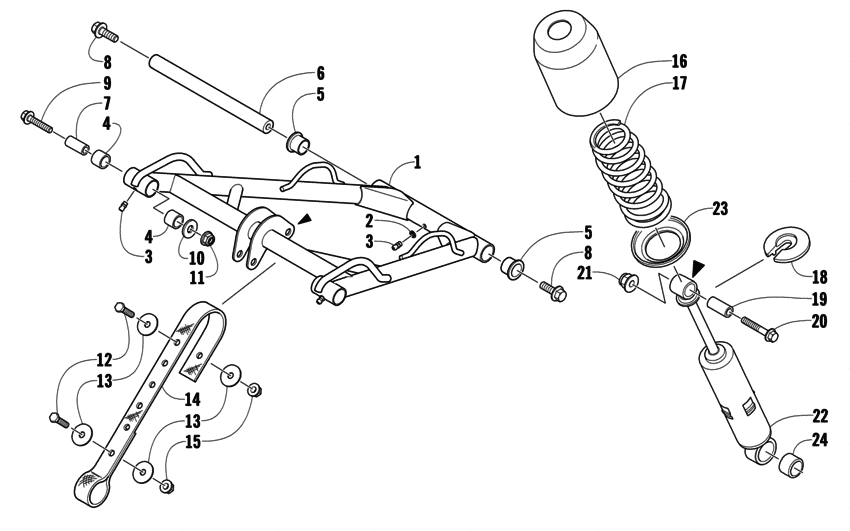

Rear Suspension Front Arm Assembly Diagram Arctic Cat CROSSFIRE Crossfire 5 EFI
- Model code
- S2009CFC1EUSB
- Engine Capacity
- 499
- Year
- 2009
- Commercial Name
- Crossfire 5 EFI
- Sales region
- General
- Colour
- Black
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- CF5 (Crossfire 5 EFI)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1704-792 ArmFront suspension inc. 2-5 ; |
1704-792 |
US $304.31 |
||
|
2
|
2
1623-011 WasherGrease fitting |
1623-011 |
US $4.40 |
||
|
3
|
3
1623-010 FittingGrease |
1623-010 |
US $12.80 |
||
|
4
|
4
0604-889 Bearing |
0604-889 |
US $9.70 |
||
|
5
|
5
3604-028 BushingFlared |
3604-028 |
US $13.12 |
||
|
6
|
6
2604-591 AxleAluminum |
2604-591 |
US $38.39 |
||
|
7
|
7
1604-162 AxleFront arm |
1604-162 |
US $10.16 |
||
|
8
|
8
1623-248 ScrewCap |
1623-248 |
US $67.10 |
||
|
9
|
9
8020-229 ScrewCap |
8020-229 |
US $36.60 |
||
|
10
|
10
0114-197 Washer |
0114-197 |
US $5.85 |
||
|
11
|
11
8047-486 NutLock |
8047-486 |
US $6.90 |
||
|
12
|
12
8002-043 ScrewCap |
8002-043 |
US $8.80 |
||
|
13
|
13
0623-184 Washer |
0623-184 |
US $7.50 |
||
|
14
|
14
3604-459 StrapLimiter |
3604-459 |
US $13.58 |
||
| replacement | |||||
|
14
|
14
4604-132 STRAP,LIMITER-1.25" X 16.50" |
4604-132 |
US $9.86 |
||
|
15
|
15
8047-366 NutLock |
8047-366 |
US $5.80 |
||
|
16
|
16
0604-590 CoverSuspension spring |
0604-590 |
US $25.51 |
||
|
17
|
17
1704-461 SpringCompression |
1704-461 |
US $121.53 |
||
|
18
|
18
1604-889
Retainer
|
1604-889 |
— | ||
|
19
|
19
1603-531 AxleShock |
1603-531 |
US $7.88 |
||
|
20
|
20
8020-226
Screw
|
8020-226 |
— | ||
|
21
|
21
8041-486 NutLock |
8041-486 |
US $5.80 |
||
|
22
|
22
3604-334 Shock absorberFront arm |
3604-334 |
US $317.40 |
||
|
23
|
23
2603-719 NutSpring; retainer |
2603-719 |
US $29.19 |
||
|
24
|
24
1604-791 BushingShock |
1604-791 |
US $27.98 |
||
