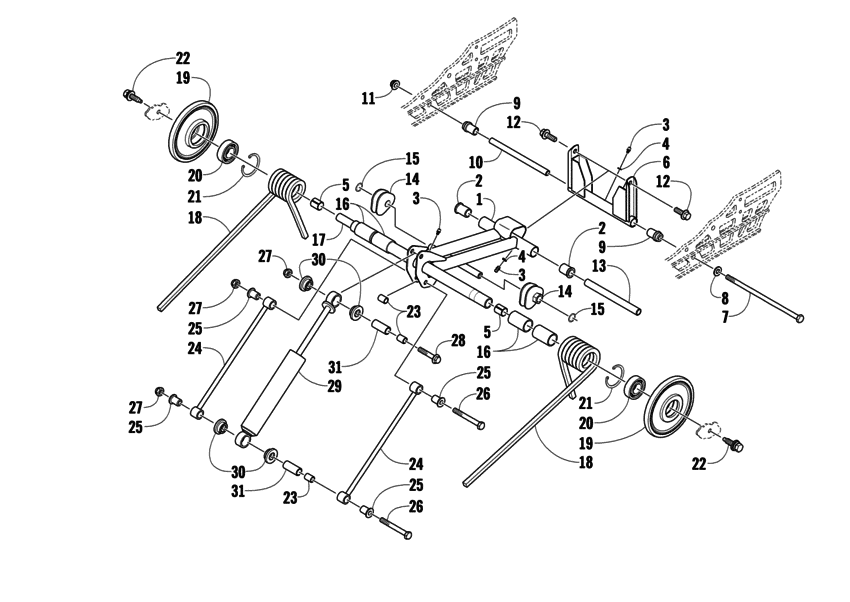

Rear Suspension Rear Arm Assembly Diagram Arctic Cat CROSSFIRE Crossfire 5 EFI
- Model code
- S2009CFC1EUSB
- Engine Capacity
- 499
- Year
- 2009
- Commercial Name
- Crossfire 5 EFI
- Sales region
- General
- Colour
- Black
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- CF5 (Crossfire 5 EFI)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1704-793 ArmIdler inc. 2, one No. 3-4, and 5 ; |
1704-793 |
US $205.61 |
||
|
2
|
2
3604-028 BushingFlared |
3604-028 |
US $13.12 |
||
|
3
|
3
1623-010 FittingGrease |
1623-010 |
US $12.80 |
||
|
4
|
4
1623-011 WasherGrease fitting |
1623-011 |
US $4.40 |
||
|
5
|
5
2604-147 Bearing |
2604-147 |
US $8.38 |
||
|
6
|
6
1704-019 ArmRear inc. one No. 3-4 ; |
1704-019 |
US $57.28 |
||
|
7
|
7
1623-037 ScrewCap |
1623-037 |
US $13.89 |
||
|
8
|
8
0623-439 Washer |
0623-439 |
US $10.90 |
||
|
9
|
9
2604-664 BushingRear arm |
2604-664 |
US $64.45 |
||
|
10
|
10
2604-663 AxleInner |
2604-663 |
US $16.80 |
||
|
11
|
11
8047-490 NutLock |
8047-490 |
US $13.40 |
||
|
12
|
12
1623-503 ScrewCap |
1623-503 |
US $16.24 |
||
|
13
|
13
2604-176 AxleAluminum |
2604-176 |
US $197.56 |
||
|
14
|
14
1604-204 BlockRight; spring adjuster |
1604-204 |
US $32.50 |
||
|
14
|
14
1604-205 BlockLeft; spring adjuster |
1604-205 |
US $32.50 |
||
|
15
|
15
0623-138 RingRetaining |
0623-138 |
US $8.80 |
||
|
16
|
16
2604-764 SleeveSpring |
2604-764 |
US $11.40 |
||
|
17
|
17
3604-085 AxleInner carriage |
3604-085 |
US $46.05 |
||
|
18
|
18
1704-809 SpringLeft; suspension |
1704-809 |
US $162.36 |
||
|
18
|
18
1704-808 SpringRight; suspension |
1704-808 |
US $162.36 |
||
|
19
|
19
1604-690 WheelIdler inc. 20-21 ; |
1604-690 |
US $46.88 |
||
|
20
|
20
0107-598 Bearing |
0107-598 |
US $29.66 |
||
|
21
|
21
0123-798 RingRetaining |
0123-798 |
US $11.30 |
||
|
22
|
22
1623-166 ScrewCap |
1623-166 |
US $19.84 |
||
|
23
|
23
1604-139 SleeveShock |
1604-139 |
US $1.89 |
||
|
24
|
24
0704-350 LinkInner carriage |
0704-350 |
US $25.51 |
||
|
25
|
25
1604-498 AxleLink |
1604-498 |
US $24.75 |
||
|
26
|
26
8020-233 ScrewCap |
8020-233 |
US $16.86 |
||
|
27
|
27
8041-486 NutLock |
8041-486 |
US $5.80 |
||
|
28
|
28
8020-226
Screw
|
8020-226 |
— | ||
|
29
|
29
3604-154 Shock absorberRear arm inc. 30-31 ; |
3604-154 |
US $298.87 |
||
|
30
|
30
1604-262 BushingShock |
1604-262 |
US $11.42 |
||
|
31
|
31
1604-397 SleeveShock eyelet |
1604-397 |
US $8.30 |
