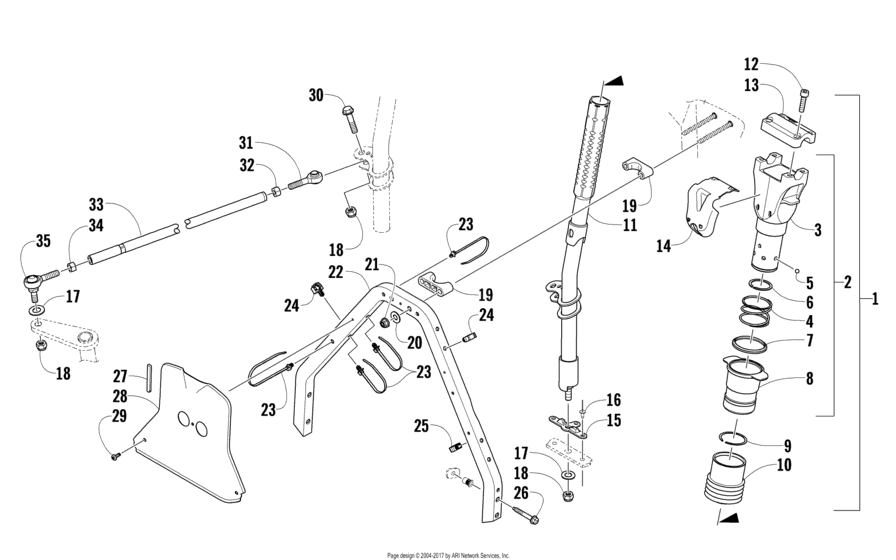

Steering Post Assembly (91619) Diagram Arctic Cat CROSSFIRE Crossfire 8
- Model code
- S2011CFHSPUSO
- Engine Capacity
- 794
- Year
- 2011
- Commercial Name
- Crossfire 8
- Sales region
- General
- Colour
- Orange
- Model
- CF8 (Crossfire 8)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1705-356 PostAssembly; steering Assembly | (inc. 2-11) |
1705-356 |
US $383.01 |
||
|
2
|
2
0705-985 BlockAssembly; adjusting Assembly | (inc. 2-7) |
0705-985 |
US $238.17 |
||
| replacement | |||||
|
2
|
2
1705-512 BLOCK,ADJUSTING-HANDLEBAR-ASSYAssembly | (inc. 2-7) |
1705-512 |
US $245.61 |
||
|
3
|
3
0605-713 BlockAdjusting Assembly | (inc. 2-7) |
0605-713 |
US $183.58 |
||
|
4
|
4
0605-715 SpringCompression Assembly | (inc. 2-7) |
0605-715 |
US $4.61 |
||
|
5
|
5
0605-714 BearingBall Assembly | (inc. 2-7) |
0605-714 |
US $1.26 |
||
|
6
|
6
1623-506 RingRetaining Assembly | (inc. 2-7) |
1623-506 |
US $1.86 |
||
|
7
|
7
0605-852 SealWiper Assembly | (inc. 2-7) |
0605-852 |
US $5.20 |
||
|
8
|
8
1705-283 CollarSlide Assembly | (inc. 2-7) |
1705-283 |
US $44.60 |
||
|
9
|
9
1623-507 RingRetaining Assembly | (inc. 2-7) |
1623-507 |
US $10.56 |
||
|
10
|
10
0605-992 SleeveProtective Assembly | (inc. 2-7) |
0605-992 |
US $13.99 |
||
|
11
|
11
1705-355 PostSteering Painted Black |
1705-355 |
US $184.82 |
||
|
12
|
12
1623-753 ScrewCap Painted Black |
1623-753 |
US $11.52 |
||
|
13
|
13
1705-284 ClampHandlebar Black |
1705-284 |
US $18.54 |
||
| replacement | |||||
|
13
|
13
1605-175 Clamp, HandlebarBlack |
1605-175 |
US $12.71 |
||
|
14
|
14
0605-867 CoverAdjusting block Black |
0605-867 |
US $4.07 |
||
|
15
|
15
0605-943
Stop
Black |
0605-943 |
— | ||
|
16
|
16
8060-888 RivetBlack |
8060-888 |
US $12.60 |
||
|
17
|
17
0623-044 WasherHardened; flat Black |
0623-044 |
US $16.55 |
||
|
18
|
18
0623-025 NutLock Black |
0623-025 |
US $21.10 |
||
|
19
|
19
0605-576 BlockSteering post; mounting Steering Post |
0605-576 |
US $12.50 |
||
|
20
|
20
8050-252 WasherSteering Post |
8050-252 |
US $8.80 |
||
|
21
|
21
8047-426 NutLock Steering Post |
8047-426 |
US $8.80 |
||
|
22
|
22
1705-260 SupportSteering Steering Post |
1705-260 |
US $126.87 |
||
|
23
|
23
0623-677 TieCable Push Mount |
0623-677 |
US $7.35 |
||
|
24
|
24
1623-406 ClipRouting Push Mount |
1623-406 |
US $3.25 |
||
|
25
|
25
1623-717 ClipRouting Push Mount |
1623-717 |
US $2.44 |
||
|
26
|
26
1623-482 ScrewCap Push Mount |
1623-482 |
US $16.24 |
||
|
27
|
27
0706-371 TrimPush Mount |
0706-371 |
US $24 |
||
|
28
|
28
5606-501 PanelClose-out Push Mount |
5606-501 |
US $98.20 |
||
|
29
|
29
1623-353 ScrewSelf-tapping Push Mount |
1623-353 |
US $3.70 |
||
|
30
|
30
8004-225 ScrewCap Push Mount |
8004-225 |
US $18.10 |
||
|
31
|
31
1605-010 Ball jointRight-hand thread; tie rod 3/8-24 (3/8 Bore) |
1605-010 |
US $39.65 |
||
|
32
|
32
0623-294 NutRight |
0623-294 |
US $2.95 |
||
|
33
|
33
0605-994 TubeTie rod Right |
0605-994 |
US $53.28 |
||
|
34
|
34
0123-917 NutLeft-hand threat; hex Left-Hand Thread |
0123-917 |
US $18.10 |
||
|
35
|
35
1605-011 Ball jointLeft-hand thread; tie rod 3/8-24 w/Stud |
1605-011 |
US $73.96 |
||
