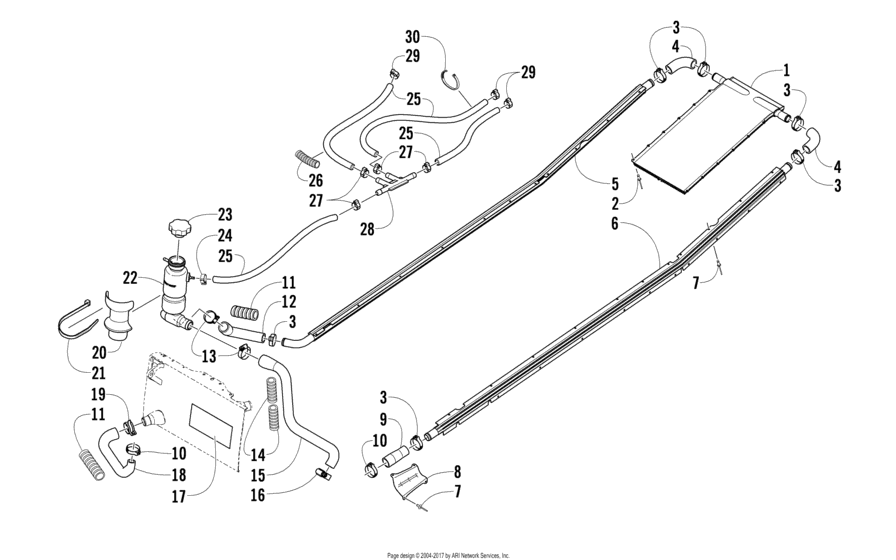

Cooling Assembly (92912) Diagram Arctic Cat CROSSFIRE CFR 1000
- Model code
- S2011CFLRCUSW
- Engine Capacity
- 999
- Year
- 2011
- Commercial Name
- CFR 1000
- Sales region
- General
- Colour
- White
- Model
- CFR 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4706-179 Heat exchangerRear Rear |
4706-179 |
US $230.71 |
||
|
2
|
2
8060-686 RivetZinc |
8060-686 |
US $5.80 |
||
|
3
|
3
1623-349 ClampHose Zinc |
1623-349 |
US $21.68 |
||
|
4
|
4
0610-816 HoseCoolant Zinc |
0610-816 |
US $16.56 |
||
|
5
|
5
5606-584 Heat exchangerRight Right |
5606-584 |
US $107.89 |
||
|
6
|
6
5606-585 Heat exchangerLeft Left |
5606-585 |
US $122.78 |
||
|
7
|
7
8060-484 RivetLeft |
8060-484 |
US $5.80 |
||
|
7
|
7
8060-488 RivetLeft |
8060-488 |
US $6.20 |
||
|
8
|
8
4606-270 ProtectorFront; hose Front |
4606-270 |
US $13.99 |
||
|
9
|
9
0610-679 HoseFront heat exchanger; coolant Front Heat Exchanger |
0610-679 |
US $22.44 |
||
|
10
|
10
1623-656 ClampHose Front Heat Exchanger |
1623-656 |
US $21.68 |
||
|
11
|
11
0619-619 ProtectorHose 4 in. |
0619-619 |
US $4.67 |
||
|
12
|
12
0610-659 HoseTank/right heat exchanger; coolant Tank/Right Heat Exchanger |
0610-659 |
US $28.06 |
||
|
13
|
13
1623-093 ClampTank/Right Heat Exchanger |
1623-093 |
US $16.86 |
||
|
14
|
14
1619-354
Condiut
5 ft |
1619-354 |
— | ||
|
15
|
15
0610-681 HoseCoolant tank/engine 5 ft |
0610-681 |
US $55.78 |
||
|
16
|
16
1623-230 ClampScrew 5 ft |
1623-230 |
US $13.42 |
||
|
17
|
17
4606-962 PadFront; heat exchanger Front |
4606-962 |
US $5.20 |
||
|
18
|
18
0610-680 HoseEngine/front heat exchanger; coolant Engine/Front Heat Exchanger |
0610-680 |
US $30.95 |
||
|
19
|
19
1623-322 ClampHose Engine/Front Heat Exchanger |
1623-322 |
US $25.40 |
||
|
20
|
20
6606-210 ShieldHeat Engine/Front Heat Exchanger |
6606-210 |
US $30.86 |
||
|
21
|
21
0123-903 TieCable 11.5 in. |
0123-903 |
US $7.40 |
||
|
22
|
22
3706-684 TankCoolant 11.5 in. |
3706-684 |
US $166.19 |
||
|
23
|
23
4606-209 CapFiller neck 11.5 in. |
4606-209 |
US $15.06 |
||
|
24
|
24
0124-045 ClampHose 11.5 in. |
0124-045 |
US $37.30 |
||
|
25
|
25
0610-538 Hose25 ft; vent 25 ft |
0610-538 |
US $107.89 |
||
|
26
|
26
1619-355 Conduit5 ft; flexible 5 ft |
1619-355 |
US $36.30 |
||
|
27
|
27
1623-655 Clamp5 ft |
1623-655 |
US $17.52 |
||
|
28
|
28
0610-717 FittingDouble-t 5 ft |
0610-717 |
US $2.79 |
||
|
29
|
29
1623-619 Clamp5 ft |
1623-619 |
US $24.20 |
||
|
30
|
30
0123-788 TieCable 8 in. |
0123-788 |
US $2.90 |
