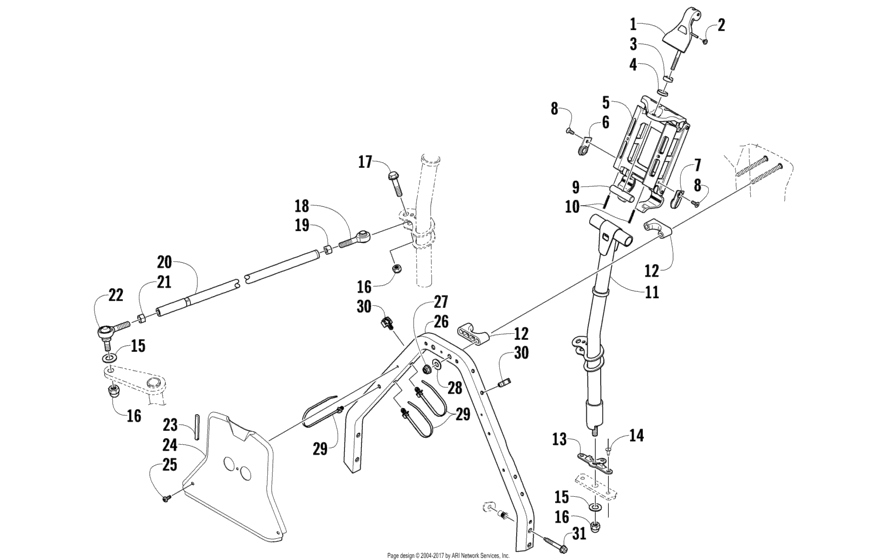

Steering Post Assembly (91550) Diagram Arctic Cat CROSSFIRE CFR 1000
- Model code
- S2011CFLRCUSW
- Engine Capacity
- 999
- Year
- 2011
- Commercial Name
- CFR 1000
- Sales region
- General
- Colour
- White
- Model
- CFR 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1705-191 LeverAssembly; cam Assembly | (inc. 2) |
1705-191 |
US $49.56 |
||
|
2
|
2
0605-839 KnobLocking pin Assembly | (inc. 2) |
0605-839 |
US $4.33 |
||
|
3
|
3
0605-837 WasherCam lever Assembly | (inc. 2) |
0605-837 |
US $3.52 |
||
|
4
|
4
0605-828 CupCam lever Assembly | (inc. 2) |
0605-828 |
US $4.33 |
||
|
5
|
5
1705-268 BlockAssembly; riser Assembly |
1705-268 |
US $275.85 |
||
|
6
|
6
0605-832 RetainerRight; riser block Right |
0605-832 |
US $83.19 |
||
|
7
|
7
0605-833 RetainerLeft; riser block Left |
0605-833 |
US $55.91 |
||
|
8
|
8
1623-018 ScrewSelf-tapping Left |
1623-018 |
US $0.86 |
||
|
9
|
9
0605-831 EndLock rod Left |
0605-831 |
US $35.43 |
||
|
10
|
10
0605-840 SpringRiser block Left |
0605-840 |
US $32.26 |
||
|
11
|
11
1705-329 PostSteering Left |
1705-329 |
US $142.64 |
||
|
12
|
12
0605-576 BlockSteering post; mounting Steering Post |
0605-576 |
US $12.50 |
||
|
13
|
13
0605-943
Stop
Steering Post |
0605-943 |
— | ||
|
14
|
14
8060-888 RivetSteering Post |
8060-888 |
US $12.60 |
||
|
15
|
15
0623-044 WasherHardened; flat Steering Post |
0623-044 |
US $16.55 |
||
|
16
|
16
0623-025 NutLock Steering Post |
0623-025 |
US $21.10 |
||
|
17
|
17
8004-225 ScrewCap Steering Post |
8004-225 |
US $18.10 |
||
|
18
|
18
1605-010 Ball jointRight-hand thread; tie rod 3/8-24 (3/8 Bore) |
1605-010 |
US $39.65 |
||
|
19
|
19
0623-294 NutRight |
0623-294 |
US $2.95 |
||
|
20
|
20
0605-995 TubeTie rod Right |
0605-995 |
US $69.54 |
||
|
21
|
21
0123-917 NutLeft-hand threat; hex Left-Hand Thread |
0123-917 |
US $18.10 |
||
|
22
|
22
1605-011 Ball jointLeft-hand thread; tie rod 3/8-24 w/Stud |
1605-011 |
US $73.96 |
||
|
23
|
23
0706-371 Trim3/8-24 w/Stud |
0706-371 |
US $24 |
||
|
24
|
24
5606-501 PanelClose-out 3/8-24 w/Stud |
5606-501 |
US $98.20 |
||
|
25
|
25
1623-353 ScrewSelf-tapping 3/8-24 w/Stud |
1623-353 |
US $3.70 |
||
|
26
|
26
1705-260 SupportSteering 3/8-24 w/Stud |
1705-260 |
US $126.87 |
||
|
27
|
27
8047-426 NutLock 3/8-24 w/Stud |
8047-426 |
US $8.80 |
||
|
28
|
28
8050-252 Washer3/8-24 w/Stud |
8050-252 |
US $8.80 |
||
|
29
|
29
0623-677 TieCable Push Mount |
0623-677 |
US $7.35 |
||
|
30
|
30
1623-406 ClipRouting Push Mount |
1623-406 |
US $3.25 |
||
|
31
|
31
1623-482 ScrewCap Push Mount |
1623-482 |
US $16.24 |
