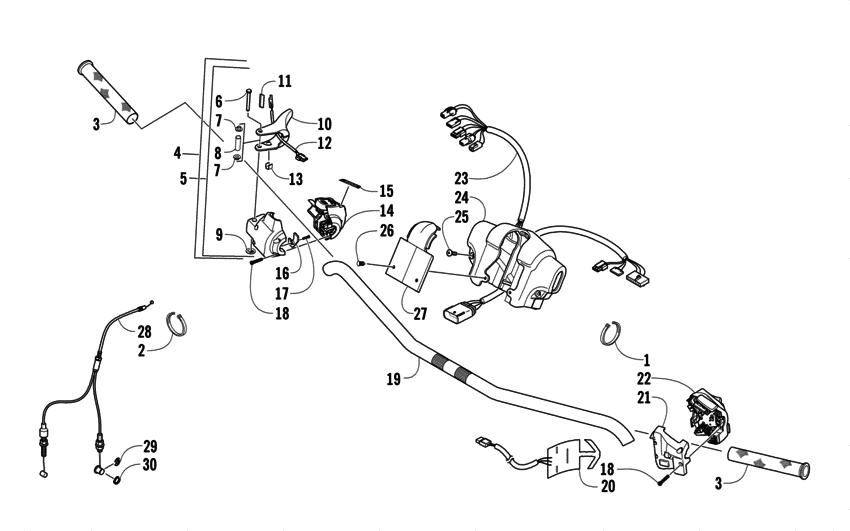

Handlebar and controls Diagram Arctic Cat F5 F5 EFI
- Model code
- S2008F5CEFUSB
- Engine Capacity
- 499
- Year
- 2008
- Commercial Name
- F5 EFI
- Sales region
- General
- Colour
- Black
- Power
- 105 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- F5 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0123-811 TieCable |
0123-811 |
US $2.15 |
||
|
2
|
2
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
3
|
3
4606-945 GripHandlebar |
4606-945 |
US $19.54 |
||
|
4
|
4
0609-826 ControlRear; throttle inc. 5-10 ; |
0609-826 |
US $177.22 |
||
| replacement | |||||
|
4
|
4
0609-882 ControlRear; throttle inc. 5-10 ; |
0609-882 |
US $177.22 |
||
|
5
|
5
0609-859 KitThrottle lever mounting inc. 6-9 ; |
0609-859 |
US $50.33 |
||
|
9
|
9
0123-766 NutPush |
0123-766 |
US $8.25 |
||
|
10
|
10
0609-795 LeverThrottle |
0609-795 |
US $83.62 |
||
|
11
|
11
0617-248 PadInsulator |
0617-248 |
US $7.83 |
||
|
12
|
12
0609-775 ElementThumbwarmer |
0609-775 |
US $68.17 |
||
| replacement | |||||
|
12
|
12
0609-827 ElementThumbwarmer |
0609-827 |
US $136.41 |
||
|
13
|
13
0609-595 ClipRetaining |
0609-595 |
US $2.28 |
||
|
14
|
14
0609-842 ControlFront; throttle |
0609-842 |
US $123.32 |
||
| replacement | |||||
|
14
|
14
0609-880 ControlFront; throttle |
0609-880 |
US $77.18 |
||
|
15
|
15
7611-770 DecalThrottle control; reverse |
7611-770 |
US $26.64 |
||
|
16
|
16
0609-792 CoverConnector |
0609-792 |
US $1.79 |
||
|
17
|
17
0609-793 ScrewSelf-tapping |
0609-793 |
US $1.04 |
||
|
18
|
18
0609-791 ScrewMachine |
0609-791 |
US $1.20 |
||
|
19
|
19
1705-092 Handlebar |
1705-092 |
US $70.67 |
||
|
20
|
20
0609-828 ElementRight; handwarmer |
0609-828 |
US $82.21 |
||
|
20
|
20
0609-829 ElementLeft; handwarmer |
0609-829 |
US $149.22 |
||
|
21
|
21
0609-811 ControlRear; dimmer |
0609-811 |
US $12.71 |
||
| replacement | |||||
|
21
|
21
0609-883 ControlRear; dimmer |
0609-883 |
US $23.33 |
||
|
22
|
22
0609-805 ControlFront; dimmer |
0609-805 |
US $117.09 |
||
| replacement | |||||
|
22
|
22
0609-929 Control,lh-w/o ptt-frt |
0609-929 |
US $176.66 |
||
|
23
|
23
1686-458 HarnessHandlebar |
1686-458 |
US $164.98 |
||
|
24
|
24
3606-693 PadAdjustable; handlebar |
3606-693 |
US $43.62 |
||
|
25
|
25
0623-128 Screw |
0623-128 |
US $4.80 |
||
|
26
|
26
3606-692 PadClose-off; handlebar |
3606-692 |
US $14.82 |
||
|
27
|
27
0623-269 ClipRetaining |
0623-269 |
US $8.25 |
||
|
28
|
28
0687-192 CableThrottle |
0687-192 |
US $117.81 |
||
| replacement | |||||
|
28
|
28
0687-212 CableThrottle |
0687-212 |
US $117.81 |
||
|
29
|
29
0124-057 E-ring |
0124-057 |
US $4.52 |
||
|
30
|
30
0124-056 Washer |
0124-056 |
US $63.55 |
||
