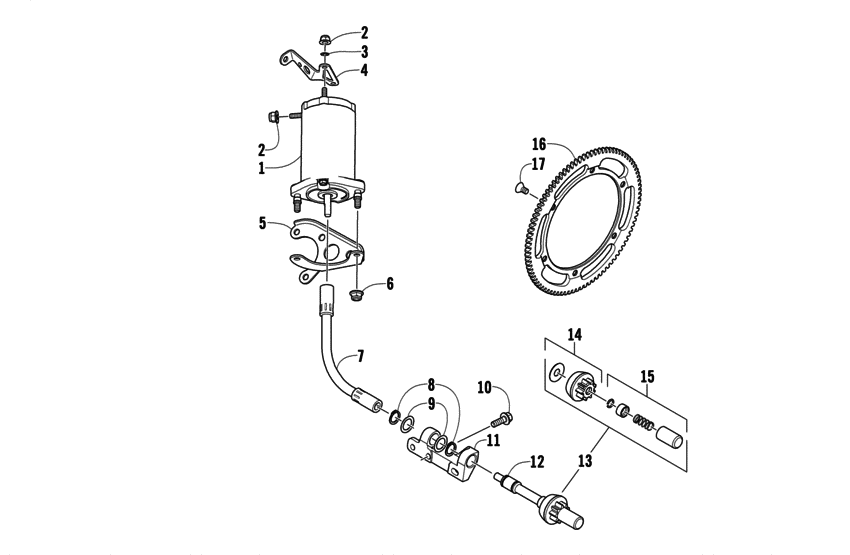

Fldrive starter motor assembly (EX-) Diagram Arctic Cat F5 F5 EFI LXR
- Model code
- S2010FCLXUSG
- Engine Capacity
- 499
- Year
- 2010
- Commercial Name
- F5 EFI LXR
- Sales region
- General
- Colour
- Green
- Power
- 105 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- F5 EFI LXR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0745-356 Starter MotorStarter inc. 2 and 6 ; |
0745-356 |
US $387.06 |
||
|
2
|
2
8427-602 Nut |
8427-602 |
US $1.45 |
||
|
3
|
3
8053-212 WasherLock |
8053-212 |
US $1.45 |
||
|
4
|
4
0745-326 BracketStarter motor; mounting |
0745-326 |
US $49.08 |
||
|
5
|
5
0745-321 BracketStarter motor - bottom; mounting |
0745-321 |
US $52.04 |
||
|
6
|
6
8427-802 NUT,HEX FLG-NYL LOCK M8X1.25Lock |
8427-802 |
US $0.75 |
||
|
7
|
7
0645-603 ShaftFlex-drive |
0645-603 |
US $313.87 |
||
| replacement | |||||
|
7
|
7
0745-312 ShaftFlex-drive |
0745-312 |
US $313.87 |
||
|
8
|
8
0645-382 RingSnap |
0645-382 |
US $2.26 |
||
|
9
|
9
0645-429 WasherThrust |
0645-429 |
US $5.70 |
||
|
10
|
10
8026-131 ScrewCap |
8026-131 |
US $23.35 |
||
|
11
|
11
0745-165 BracketPinion drive |
0745-165 |
US $59.98 |
||
|
12
|
12
0745-170 DriveFlex-drive shaft; pinion inc. 13-15 ; |
0745-170 |
US $213.36 |
||
|
13
|
13
0745-224 Kit, Pinion Drive AssemblyPinion drive assembly inc. 14-15 ; |
0745-224 |
US $92.66 |
||
|
14
|
14
0645-380 Pinion drive assembly |
0645-380 |
US $85.56 |
||
|
15
|
15
0645-186 KitPinion; stopper |
0645-186 |
US $47.08 |
||
|
16
|
16
0645-367
Ring gear
|
0645-367 |
— | ||
| replacement | |||||
|
16
|
16
0745-402 Ring, gear |
0745-402 |
US $278.16 |
||
|
17
|
17
1623-821 ScrewMachine |
1623-821 |
US $58.44 |
||
