Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 4606-575 Housing Left - Red	4606-575	—
2	2 0620-356 Speedometer/tachometer Left - Red	0620-356	US $513.12
3	3 0620-322 Bracket Retaining Left - Red	0620-322	US $10.94
4	4 0423-493 Nut w/washer Left - Red	0423-493	US $2.15
5	5 1623-129 Screw Self-tapping Left - Red	1623-129	US $3.34
	replacement
5	5 2623-166 Screw, Self-Tapping Left - Red	2623-166	US $10.40
6	6 1623-618 Screw Self-tapping Left - Red	1623-618	US $9.22
7	7 2718-763 Console (inc. 8-11)	2718-763	—
8	8 7611-574 Decal French; caution French	7611-574	US $15.39
9	9 7611-575 Decal English; caution English	7611-575	US $15.39
10	10 8611-848 Decal French; warning French	8611-848	US $16.80
11	11 8611-849 Decal English; warning English	8611-849	US $16.80
12	12 0617-558 Foam Front; console Front	0617-558	US $28.06
13	13 0617-559 Foam Rear; console Rear	0617-559	US $47.53
14	14 0623-785 Screw Self-tapping Rear	0623-785	US $8.80
15	15 0641-897 Outlet 12v; accessory 12V	0641-897	US $26.21
16	16 1623-669 Screw Shoulder TSTRH M6 x 1.0 x 80mm	1623-669	US $50.44
17	17 4606-477 Close-off Handlebar TSTRH M6 x 1.0 x 80mm	4606-477	US $29.71
18	18 0423-396 Screw Self-tapping TSTRH M6 x 1.0 x 80mm	0423-396	US $8.92
19	19 0630-264 Washer TSTRH M6 x 1.0 x 80mm	0630-264	US $4.80
20	20 0609-910 Switch,open ignition-2012 (inc. 6-8)	0609-910	US $63.21
21	21 0430-050 Nut Ignition switch; flange (inc. 6-8)	0430-050	US $2.56
22	22 0430-042 Key Blank; ignition Y Series - Left-Side Cut	0430-042	US $8.43
22	22 0430-043 Key Blank; ignition Z Series - Right-Side Cut	0430-043	US $8.43
23	23 0430-054 Cover, key Key Z Series - Right-Side Cut	0430-054	US $17.09

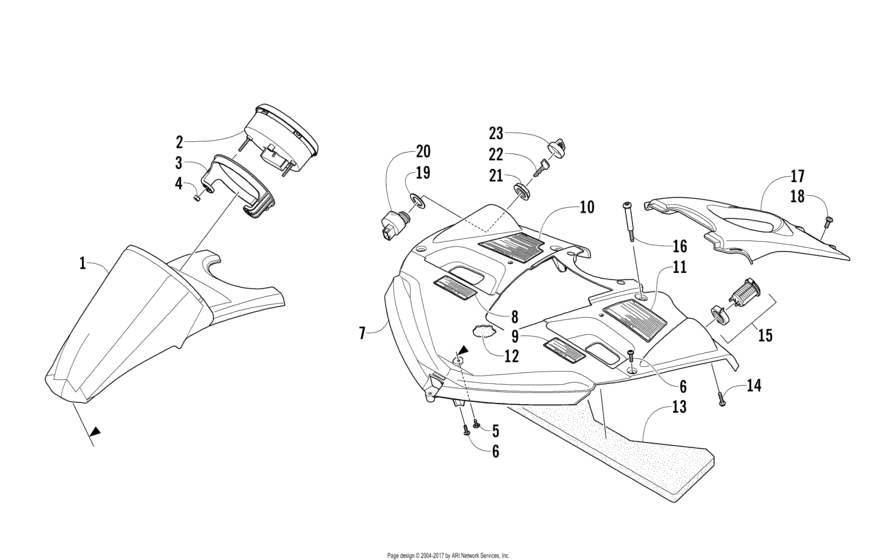

Console Assembly (98217) Diagram Arctic Cat F5 F5 EFI Orange General 16837702-862321

Console Assembly (98217) Diagram Arctic Cat F5 F5 EFI Orange General 16837702-862321
