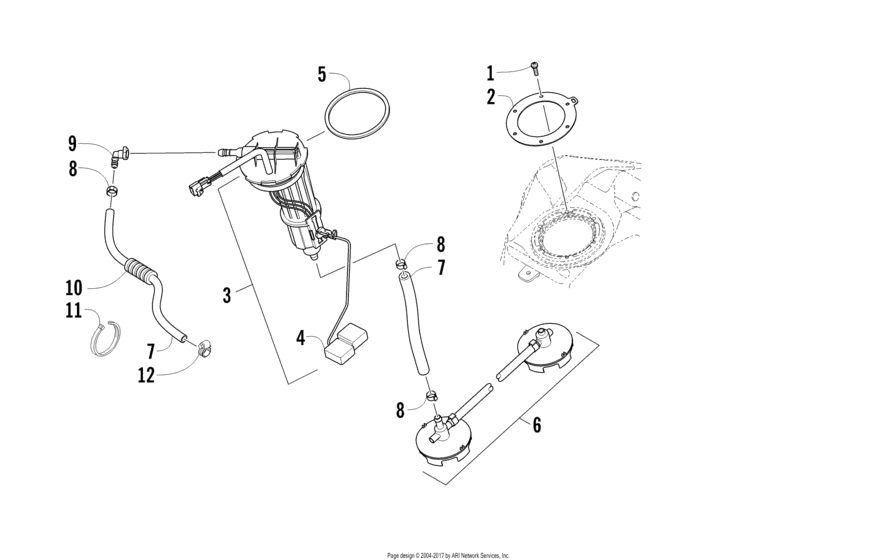

Fuel Pump Assembly (95374) Diagram Arctic Cat F5 F5 EFI
- Model code
- S2013F5CEFUSO
- Engine Capacity
- 499
- Year
- 2013
- Commercial Name
- F5 EFI
- Sales region
- General
- Colour
- Orange
- Model
- F5 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0423-898 ScrewMachine Inner |
0423-898 |
US $4.44 |
||
|
2
|
2
2670-042 PlateRetaining Fuel Pump |
2670-042 |
US $34.29 |
||
|
3
|
3
2670-063 PumpAssembly; fuel Assembly | (inc. 4) |
2670-063 |
US $1,000.41 |
||
|
4
|
4
2670-235 Float,fuel pump-walbro 75-22Assembly | (inc. 4) |
2670-235 |
US $13.92 |
||
|
5
|
5
0470-838 SealAssembly | (inc. 4) |
0470-838 |
US $4.22 |
||
|
6
|
6
2670-054 Ca sign,6x6 cpmac atvAssembly | (inc. 7 and one No. 8) |
2670-054 |
US $309.89 |
||
|
7
|
7
0610-971 HOSE,FUEL-IN TANK-10 FT10 ft |
0610-971 |
US $262.61 |
||
|
8
|
8
0610-563 ClampHose 10 ft |
0610-563 |
US $9.40 |
||
|
9
|
9
1670-878 FittingQuick-connect 10 ft |
1670-878 |
US $18.30 |
||
|
10
|
10
1619-349 Conduit5 ft; flexible 5 ft |
1619-349 |
US $16.80 |
||
|
11
|
11
0123-788 TieCable 8 in. |
0123-788 |
US $2.90 |
||
|
12
|
12
0623-373 ClampHose 8 in. |
0623-373 |
US $7.68 |
