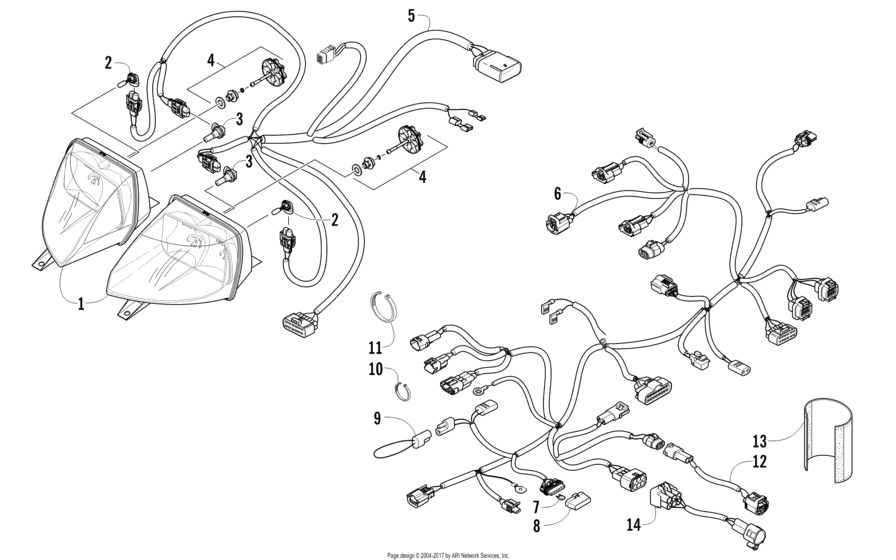

Headlight And Wiring Assemblies (98216) Diagram Arctic Cat F5 F5 EFI
- Model code
- S2013F5CEFUSO
- Engine Capacity
- 499
- Year
- 2013
- Commercial Name
- F5 EFI
- Sales region
- General
- Colour
- Orange
- Model
- F5 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0609-872 Lens/reflectorHeadlight - right Headlight - Right | (inc. 2-4) |
0609-872 |
US $285.53 |
||
|
1
|
1
0609-873 Lens/reflectorHeadlight - left Headlight - Left | (inc. 2-4) |
0609-873 |
US $253.82 |
||
|
2
|
2
0609-783 BulbLow beam; headlight Low Beam |
0609-783 |
US $47.08 |
||
|
3
|
3
0609-831 BulbHigh beam; headlight High Beam |
0609-831 |
US $47.08 |
||
|
4
|
4
0609-779 AdjusterAssembly; headlight Assembly |
0609-779 |
US $40.89 |
||
|
5
|
5
1686-634 Harness,console-2-stroke w/elec startAssembly |
1686-634 |
US $219.71 |
||
|
6
|
6
1686-603 Harness, main (2011 f5 lxr)(inc. 7-8) |
1686-603 |
US $820.25 |
||
|
7
|
7
0430-098 Fuse,mini-20a20 Amp |
0430-098 |
US $3.92 |
||
|
8
|
8
0609-889 CoverFuse holder 20 Amp |
0609-889 |
US $22.44 |
||
|
9
|
9
0486-164 TetherAccessory connector 20 Amp |
0486-164 |
US $13.42 |
||
|
10
|
10
0123-788 TieCable 8 in. |
0123-788 |
US $2.90 |
||
|
11
|
11
0123-903 TieCable 11.5 in. |
0123-903 |
US $7.40 |
||
|
12
|
12
1686-173 HarnessWater temperature sensor; adapter Engine Coolant Temperature Sensor |
1686-173 |
US $35.43 |
||
|
13
|
13
3706-761 WrapEngine Coolant Temperature Sensor |
3706-761 |
US $13.99 |
||
|
14
|
14
1686-556 HarnessTaillight; extension Taillight |
1686-556 |
US $30.86 |
