Hood, Windshield, And Front Bumper Assembly (98215)

Difficulties in parts search?

Parts list

Hood, Windshield, And Front Bumper Assembly

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 3718-402 Lid,hood-orn-w/decals Orange \| (inc. 2-10)	3718-402	US $244.39
2	2 7901-079 Lid,hood-orn-mfg assy Orange \| (inc. 3-8)	7901-079	US $166.19
3	3 4606-624 Vent Outer front - right; hood Outer Front - Right - Black	4606-624	US $19.09
3	3 4606-625 Vent Outer front - left; hood Outer Front - Left - Black	4606-625	US $32.67
4	4 4606-640 Vent Outer rear - right; hood Outer Rear - Right - Black	4606-640	US $29.64
4	4 4606-641 Vent Outer rear - left; hood Outer Rear - Left - Black	4606-641	US $19.09
5	5 4606-614 Vent Inner - Right Hand - Mold (Black)	4606-614	—
5	5 4606-615 Vent Inner - left; hood Inner - Left Hand - Mold (Black)	4606-615	US $58.68
6	6 1623-610 Pin Retaining Inner - Left Hand - Mold (Black)	1623-610	US $54.44
7	7 5706-084 Clip,holddown-hood lid-rh-ptd blk Right	5706-084	US $18.20
7	7 5706-085 Clip,holddown-hood lid-lh-ptd blk Left	5706-085	US $18.20
8	8 1623-409 Nut Push Left	1623-409	US $7.50
9	9 9611-746 Decal,hood-orn rh Right	9611-746	US $78.11
9	9 9611-747 Decal,hood-orn lh Left	9611-747	US $64.45
10	10 9611-751 Decal,emblem-chrome Left	9611-751	US $39.54
11	11 1623-469 Nut Stamped Left	1623-469	US $6.60
12	12 3706-348 Bracket Right; hinge Right	3706-348	US $22.94
12	12 3706-347 Bracket Left; hinge Left	3706-347	US $47.16
13	13 3718-410 Spar,front-rh blk w/orn decal w/Decals - Right - Orange \| (inc. 14-16)	3718-410	US $88.02
13	13 3718-411 Spar,front-lh blk w/orn decal w/Decals - Left - Orange \| (inc. 14 and 16)	3718-411	US $88.02
14	14 4606-900 Spar Right; front w/o decals w/o Decals - Right - Orange	4606-900	US $68.17
14	14 4606-901 Spar Left; front w/out decals w/o Decals - Left - Orange	4606-901	US $68.17
15	15 4606-934 Foil Right; spar Right	4606-934	US $2.90
16	16 9611-744 Decal,frt spar-orn rh Forward - Right	9611-744	US $88.69
16	16 9611-745 Decal,frt spar-orn lh Forward - Left	9611-745	US $78.11
17	17 4606-926 Strap Hold-down Forward - Left	4606-926	US $6.05
18	18 5606-926 Bezel Right; intake Right - Orange	5606-926	US $64.45
18	18 5606-927 Bezel Left; intake Left - Orange	5606-927	US $70.91
19	19 5606-961 Windshield Left - Orange	5606-961	US $224.63
20	20 1623-677 Rivet Plastic Left - Orange	1623-677	US $9.05
21	21 4606-961 Bracket Hold-down; windshield Hold-Down	4606-961	US $16.56
22	22 1623-129 Screw Self-tapping Hold-Down	1623-129	US $3.34
	replacement
22	22 2623-166 Screw, Self-Tapping Hold-Down	2623-166	US $10.40
23	23 4606-517 Fascia Upper; bumper Upper Orange	4606-517	US $55.78
24	24 2718-925 Bumper,front clip-mold wht w/ refl White \| (inc. 24)	2718-925	US $150.09
25	25 9611-384 Decal,reflector-amber rh Right - Amber	9611-384	US $29.45
25	25 9611-385 Decal,reflector-amber lh Left - Amber	9611-385	US $26.77
26	26 0423-355 Screw Shoulder Left - Amber	0423-355	US $5.56
27	27 8427-602 Nut Left - Amber	8427-602	US $1.45
28	28 1623-775 Screw Body Left - Amber	1623-775	US $9.60
29	29 8424-602 Nut Left - Amber	8424-602	US $1.72
30	30 0623-966 Screw Self-tapping Left - Amber	0623-966	US $1.50
31	31 8053-242 Washer Lock Left - Amber	8053-242	US $19
32	32 5606-467 Fascia Lower w/o decals; bumper Lower White	5606-467	US $89.28
33	33 4606-604 Vent Right; bumper Right - Black	4606-604	US $24.24
33	33 4606-605 Vent Left; bumper Left - Mold - Black	4606-605	US $24.24

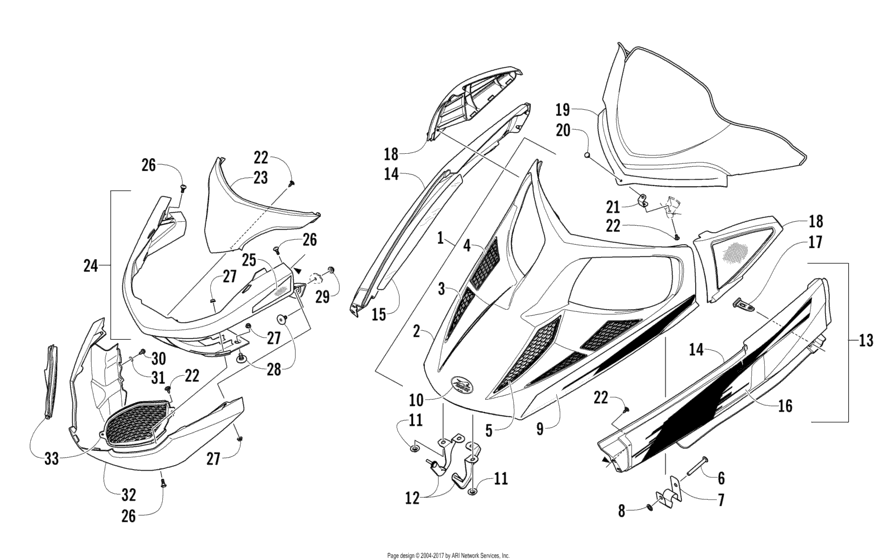

Hood, Windshield, And Front Bumper Assembly (98215) Diagram Arctic Cat F5 F5 EFI Orange General 16837719-862321
