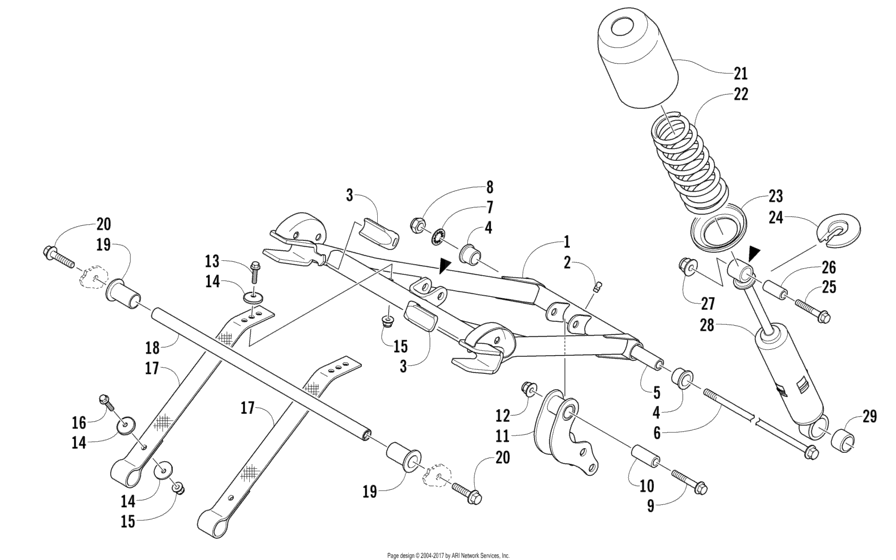

Rear Suspension Front Arm Assembly (98212) Diagram Arctic Cat F5 F5 EFI
- Model code
- S2013F5CEFUSO
- Engine Capacity
- 499
- Year
- 2013
- Commercial Name
- F5 EFI
- Sales region
- General
- Colour
- Orange
- Model
- F5 EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1704-755 ArmFront suspension (inc. 2-6) |
1704-755 |
US $285.21 |
||
|
2
|
2
1623-010 FittingGrease (inc. 2-6) |
1623-010 |
US $12.80 |
||
|
3
|
3
3604-141 BumperFront slider (inc. 2-6) |
3604-141 |
US $8.05 |
||
|
4
|
4
0104-386 Bushing(inc. 2-6) |
0104-386 |
US $39.20 |
||
|
5
|
5
3604-272 AxleInner; front arm (inc. 2-6) |
3604-272 |
US $19.09 |
||
|
6
|
6
1423-064 Screw,hfh m10-1.25x250 cl10.9-zinc phos(inc. 2-6) |
1423-064 |
US $9.22 |
||
| replacement | |||||
|
6
|
6
1423-431 Screw, Cap(inc. 2-6) |
1423-431 |
US $8.43 |
||
|
7
|
7
1623-992 Washer,lock-m10 intl tooth typ j z&c(inc. 2-6) |
1623-992 |
US $1.29 |
||
|
8
|
8
8422-002 NutLock (inc. 2-6) |
8422-002 |
US $1.39 |
||
|
9
|
9
8408-850 ScrewCap (inc. 2-6) |
8408-850 |
US $3 |
||
|
10
|
10
2603-574 AxleInner (inc. 2-6) |
2603-574 |
US $25.23 |
||
|
11
|
11
1704-758 PivotRear shock (inc. 2-6) |
1704-758 |
US $38.17 |
||
|
12
|
12
8427-802 NUT,HEX FLG-NYL LOCK M8X1.25Lock (inc. 2-6) |
8427-802 |
US $0.75 |
||
|
13
|
13
8476-620 ScrewCap (inc. 2-6) |
8476-620 |
US $3.10 |
||
|
14
|
14
8450-109 Washer,flat m6-6.87x25.4x2.32 z&y(inc. 2-6) |
8450-109 |
US $3.52 |
||
|
15
|
15
8427-602 Nut(inc. 2-6) |
8427-602 |
US $1.45 |
||
|
16
|
16
8408-630 ScrewCap (inc. 2-6) |
8408-630 |
US $2.68 |
||
|
17
|
17
3604-413 StrapLimiter (inc. 2-6) |
3604-413 |
US $20.41 |
||
|
18
|
18
3604-234 AxleFront slider (inc. 2-6) |
3604-234 |
US $90.93 |
||
|
19
|
19
3604-233 BushingFront slider (inc. 2-6) |
3604-233 |
US $31.15 |
||
|
20
|
20
8408-041 ScrewCap (inc. 2-6) |
8408-041 |
US $3 |
||
|
21
|
21
0604-790 CoverCompression spring (inc. 2-6) |
0604-790 |
US $22.94 |
||
|
22
|
22
1704-236 SpringCompression Black |
1704-236 |
US $55.65 |
||
|
23
|
23
2603-719 NutSpring; retainer Black |
2603-719 |
US $29.19 |
||
|
24
|
24
1603-889 RetainerSpring Black |
1603-889 |
from US $14.35 |
||
|
25
|
25
8408-050 ScrewCap Black |
8408-050 |
US $18.90 |
||
|
26
|
26
3604-273 AxleShock Black |
3604-273 |
US $2.73 |
||
|
27
|
27
8427-002 NUT,HEX FLG-NYL LOCK M10X1.25Lock Black |
8427-002 |
from US $5.56 |
||
|
28
|
28
3604-419 Shock absorberBlack |
3604-419 |
US $140.16 |
||
|
29
|
29
1604-791 BushingShock 0.890 x 0.800 |
1604-791 |
US $27.98 |
||
